3563000
Part Number: 3563000
Manufacturer
Rittal
Part number
3563000
Category
Alt Part Number
SV 3563.000
Product Information
Extended Description

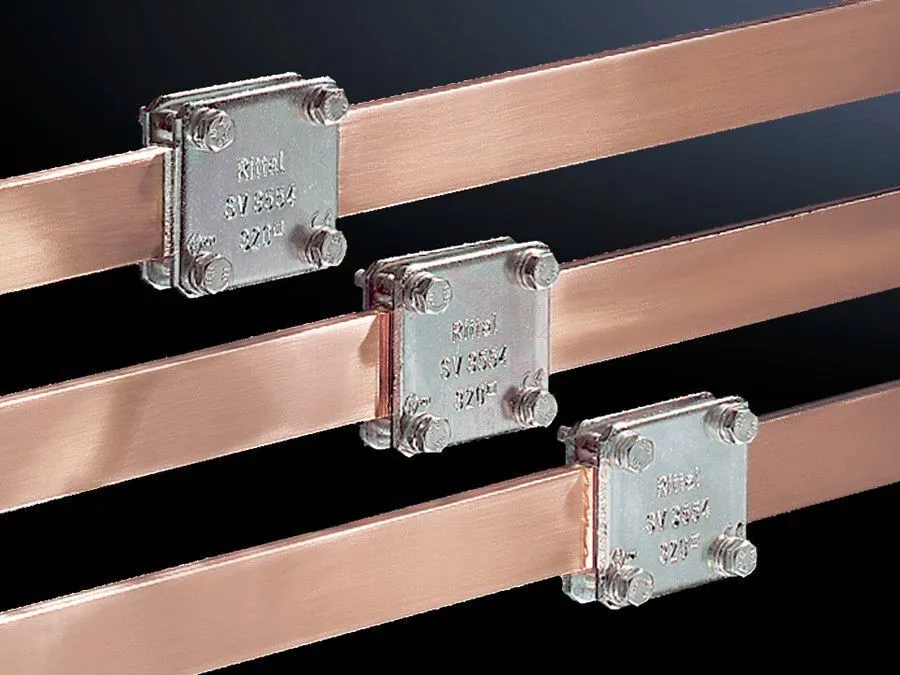

3563000 Rittal: SV Plate clamp, for laminated copper bar, clamping area WH: 54x10 mm, for busbar WH: 60x10 mm
Article number
SV 3563.000
Product description
For connecting laminated copper bars, no drilling required.
Material
Sheet steel
Surface finish
Zinc-plated, passivated
Clamping area for laminated copper bars (W x H)
54 x 10 mm
To fit busbars
60 x 10 mm
To fit busbars
Busbar E-Cu
Packs of
3 pc(s).
Weight/pack
1.569 kg
PCF per pack (cradle-to-gate)
6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
85369010
EAN
4028177044418
ETIM 9
EC000001
ETIM 8
EC000001
ECLASS 8.0
27141146
Product description
SV Plate clamp, for laminated copper bar, clamping area WH: 54x10 mm, for busbar WH: 60x10 mm
