3569005
Part Number: 3569005
Manufacturer
Rittal
Part number
3569005
Category
Alt Part Number
SV 3569.005
Product Information
Extended Description

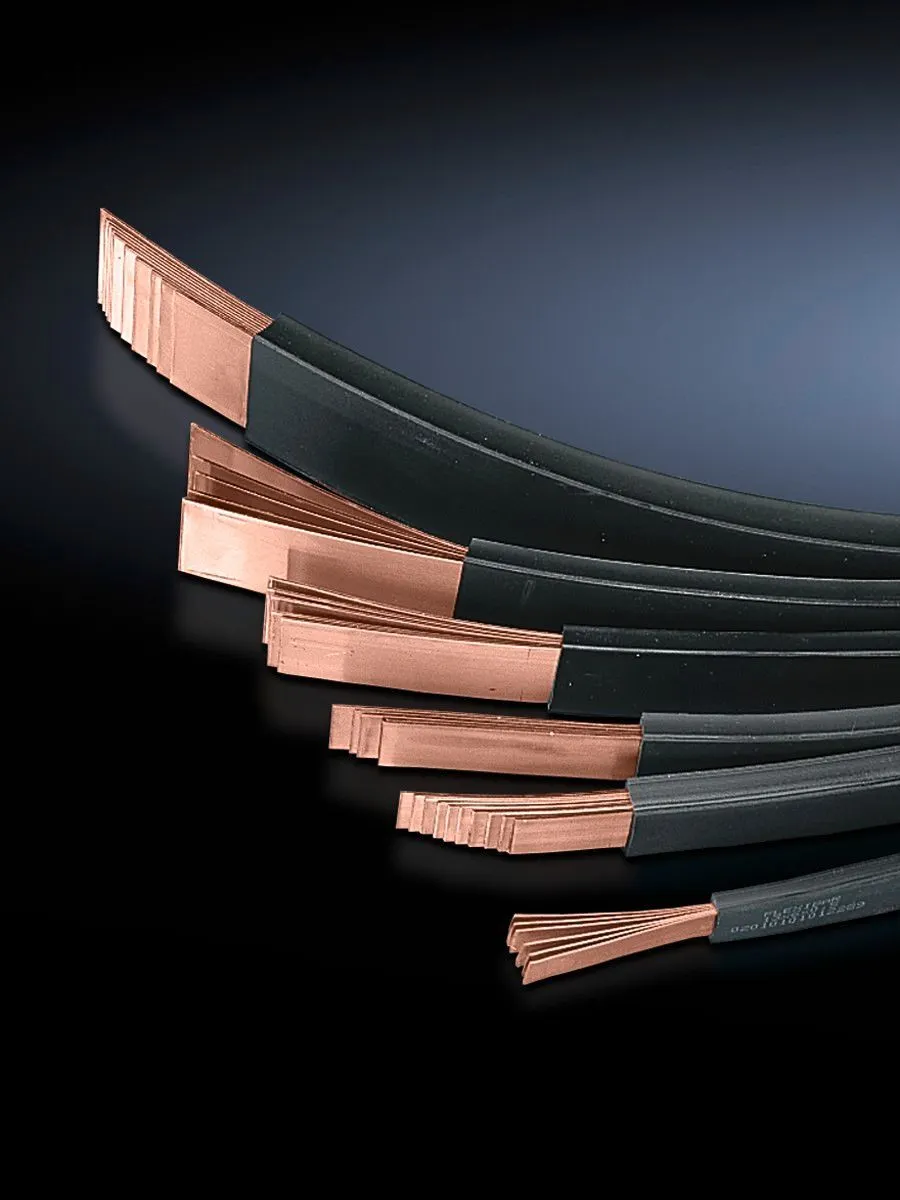

3569005 Rittal: SV Laminated copper bar, WH: 15,5x8 mm, L: 2000 mm
Article number
SV 3569.005
Material
Cu lamina High-purity electrolyte copper F20 | Insulation: Highly resistant vinyl compound, elongation 370%, temperature: -30 °C...+105 °C, fire protection corresponding to UL-94 V0, dielectric strength: 20 kV/mm
Length
2,000 mm
Rated current for temperature increase 50 K
480 A
Rated current for temperature increase 30 K
365 A
Rated current for temperature increase 70 K
575 A
Note
Construction = Number of lamina x lamina width x lamina thickness
Version – laminated flat copper
Number of lamina: 10 | Membrane width: 15.5 mm | Membrane thickness: 0.8 mm
Packs of
1 pc(s).
Weight/pack
2.72 kg
Copper weight (kg per piece)
2.22
Customs tariff number
74071000
EAN
4028177666757
ETIM 9
EC001522
ETIM 8
EC001522
ECLASS 8.0
27370303
Product description
SV Laminated copper bar, WH: 15,5x8 mm, L: 2000 mm
