3578005
Part Number: 3578005
Manufacturer
Rittal
Part number
3578005
Category
Alt Part Number
SV 3578.005
Product Information
Extended Description

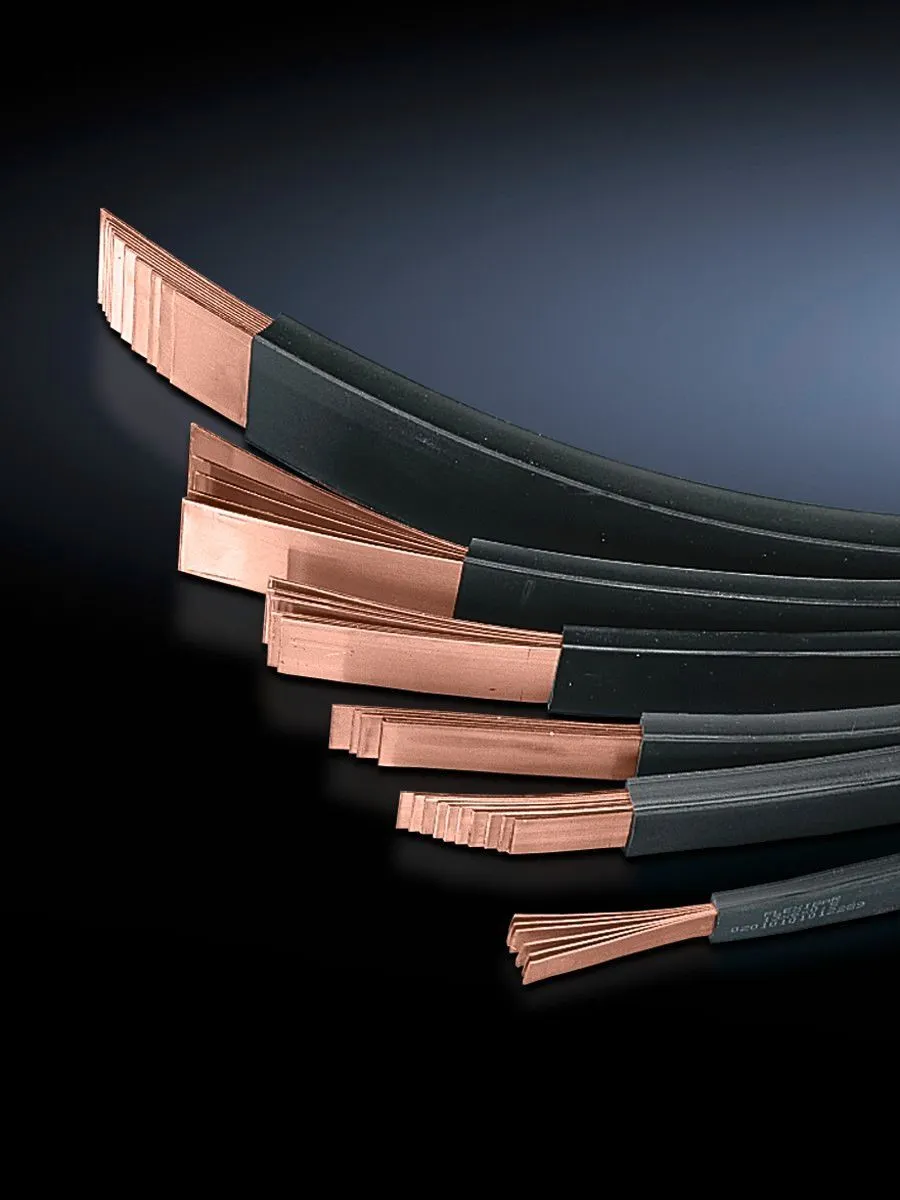

3578005 Rittal: SV Laminated copper bar, WH: 50x10 mm, L: 2000 mm
Article number
SV 3578.005
Material
Cu lamina High-purity electrolyte copper F20 | Insulation: Highly resistant vinyl compound, elongation 370%, temperature: -30 °C...+105 °C, fire protection corresponding to UL-94 V0, dielectric strength: 20 kV/mm
Length
2,000 mm
Rated current for temperature increase 50 K
1,365 A
Rated current for temperature increase 30 K
1,030 A
Rated current for temperature increase 70 K
1,635 A
Note
Construction = Number of lamina x lamina width x lamina thickness
Version – laminated flat copper
Number of lamina: 10 | Membrane width: 50 mm | Membrane thickness: 1 mm
Packs of
1 pc(s).
Weight/pack
10.5 kg
Copper weight (kg per piece)
8.96
Customs tariff number
74071000
EAN
4028177666849
ETIM 9
EC001522
ETIM 8
EC001522
ECLASS 8.0
27370303
Product description
SV Laminated copper bar, WH: 50x10 mm, L: 2000 mm
