3584020
Part Number: 3584020
Manufacturer
Rittal
Part number
3584020
Category
Alt Part Number
SV 3584.020
Product Information
Extended Description

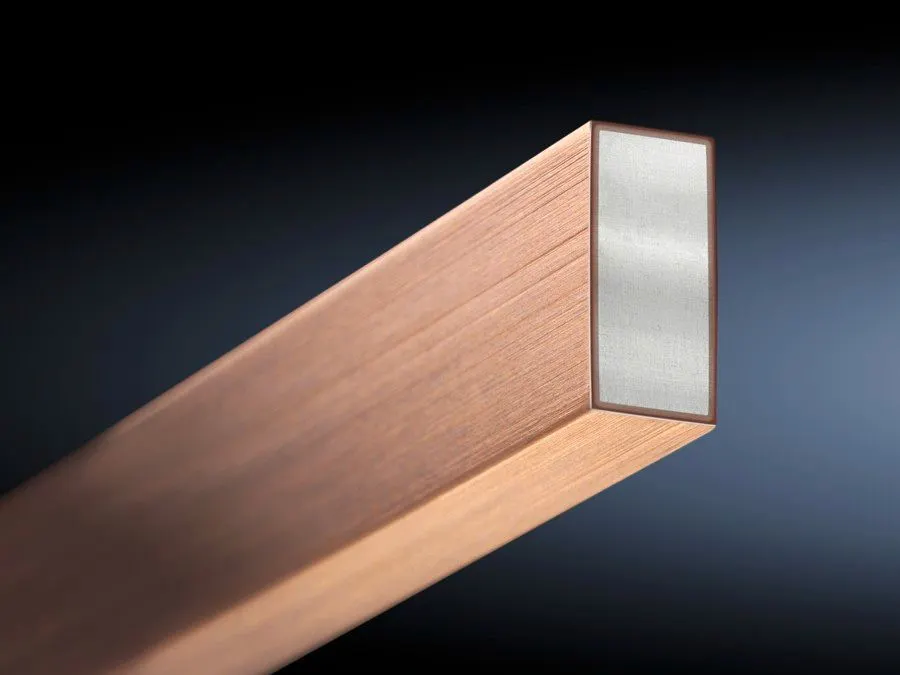

3584020 Rittal: SV Busbar CUPONAL, WH: 30x5 mm, L: 2400 mm
Article number
SV 3584.020
Product description
Copper-coated aluminium busbars, suitable for configuring busbar systems with busbar supports 9340.000/9340.050.
Material
Aluminium | Copper
Length
2,400 mm
Rated current max.
328 A
Note
The rated current is derived at 65 °C bar temperature and 35 °C ambient temperature
Standards
DIN EN 13 601
Cross-section
30 mm x 5 mm
Packs of
6 pc(s).
Weight/pack
54 kg
Copper weight (kg per piece)
0.52
Customs tariff number
74071000
EAN
4028177686571
ETIM 8
EC001522
ETIM 7.0
EC001522
ECLASS 8.0
27370303
Product description
SV Busbar CUPONAL, WH: 30x5 mm, L: 2400 mm
