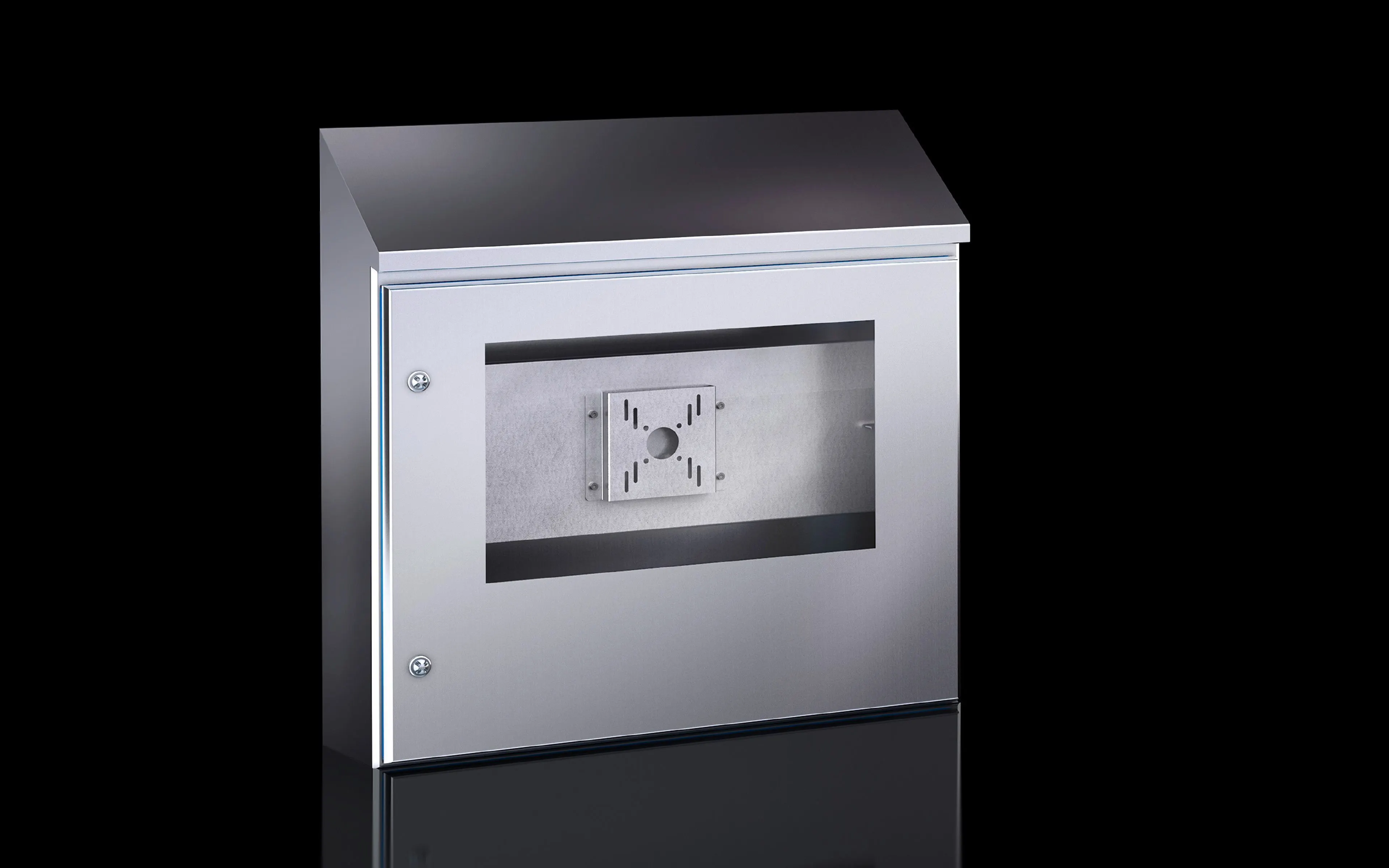

4000062
Part Number: 4000062
Product Information
Article number
HD 4000.062
Benefits
Roof angled forwards by 30°
Material
Enclosure and door: Stainless steel 1.4301 (AISI 304) | Lock insert HD: Stainless steel 1.4404 (AISI 316L) | Viewing window: Polycarbonate | Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600 | Viewing window: Polycarbonate
Surface finish
Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm | Seal: Blue, dyed (RAL 5010)
Supply includes
Enclosure of all-round solid construction | Door with viewing window and inserted seal | R/h door hinge | Holder for desktop TFT with VESA 75/100 locator
Options
without viewing window | Mounting panel instead of a mounting plate | Cut-out for touch panel instead of viewing window | HD keyboard support
Dimensions
Width:Â 810 mm | Height, front:Â 692 mm | Height rear:Â 848 mm | Depth:Â 266 mm
Visible area
Viewing window width:Â 535 mm | Viewing window height:Â 325 mm
Material thickness - enclosure
1.5 mm
Material thickness - door
2 mm
Protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 4X
IK Code
IK08
Packs of
1 pc(s).
Weight/pack
33.2 kg
Customs tariff number
94032080
EAN
4028177709539
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
