4000083
Part Number: 4000083
Product Information
Extended Description

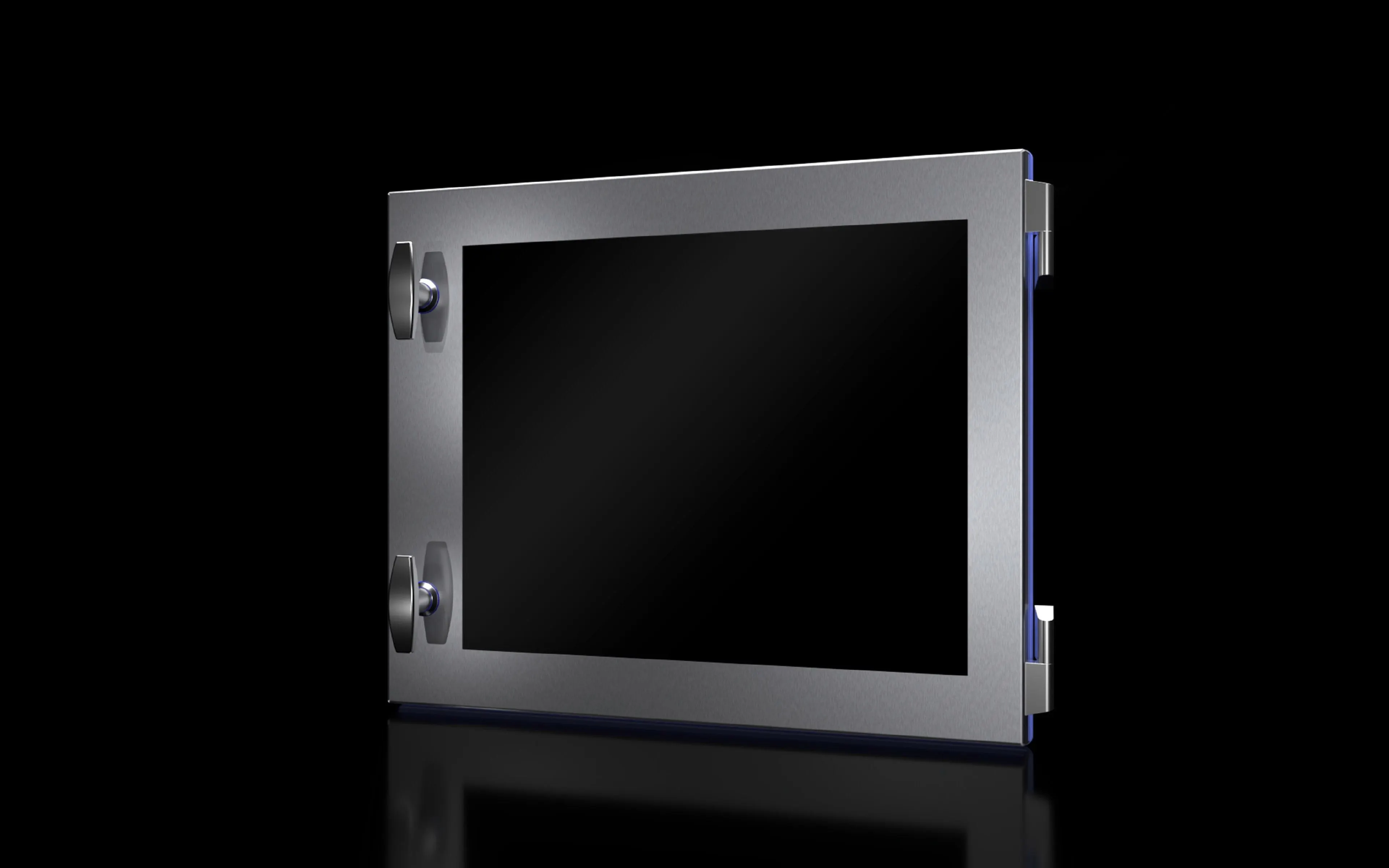

4000083 Rittal: HD System window, with T handle, WxH: 518x436 mm, stainless steel, 1.4301
Article number
HD 4000.083
Product description
For the protection of switches or displays.
Benefits
Large viewing panel
Material
Frame: Stainless steel 1.4301 (AISI 304) | Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600 | Viewing window: Polycarbonate
Supply includes
2 hinges | T handle | Assembly parts
Visible area
Viewing window width: 400 mm | Viewing window height: 330 mm
Dimensions
Width: 518 mm | Height: 436 mm | Depth: 65 mm
To fit
Enclosure type: HD compact enclosure
IP protection category to IEC 60 529
IP 55
IK Code
IK08
Installation options
For external mounting on surfaces.
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Customs tariff number
39252000
EAN
4028177985155
ETIM 9
EC002527
ETIM 8
EC002527
ECLASS 8.0
27182204
Product description
HD System window, with T handle, WxH: 518x436 mm, stainless steel, 1.4301
