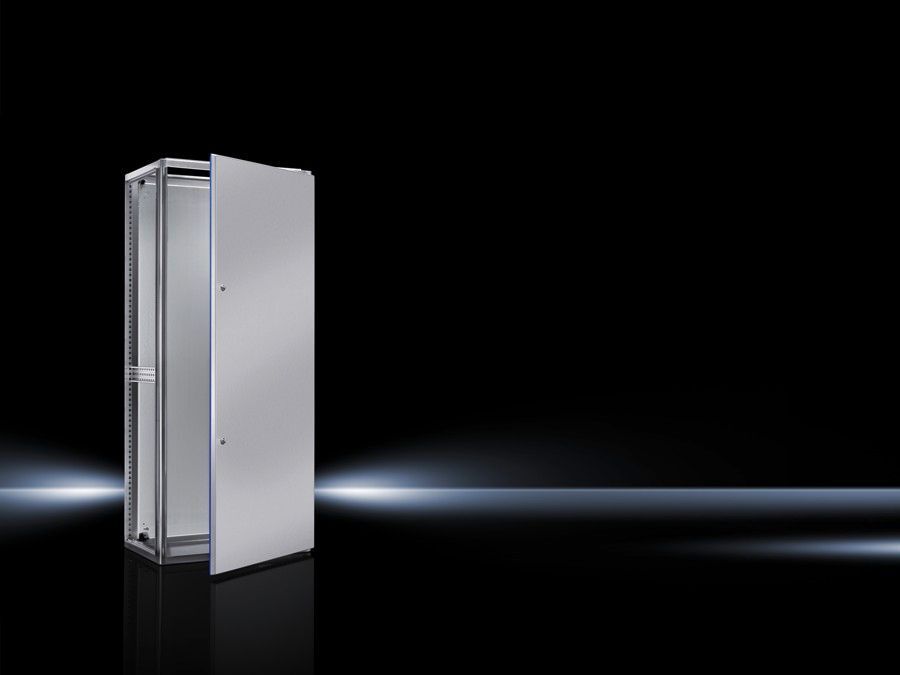

4000685
Part Number: 4000685
Product Information
Article number
HD 4000.685
Material
Enclosure and door: Stainless steel 1.4301 (AISI 304) | Lock insert HD: Stainless steel 1.4404 (AISI 316L) | Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600 | Mounting plate: Sheet steel
Surface finish
Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm | Mounting plate: Zinc-plated | Seal: Blue, dyed (RAL 5010)
Supply includes
Enclosure frame with welded rear panel gland plate | Door with inserted seal | R/h door hinge with single-door enclosures, may be swapped to opposite side | Mounting plate
Options
HD supporting structure with levelling
Dimensions
Width:Â 600 mm | Height:Â 1,800 mm | Depth:Â 500 mm
Dimensions mounting plate (W x H)
499 mm x 1,696 mm
Door opening angle
125°
IK Code
IK08
Basic material
Stainless steel 1.4301 (AISIÂ 304)
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 4X
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
89 kg
Customs tariff number
94032080
EAN
4028177693586
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
