4050335

Part Number: 4050335
4050335
Manufacturer
Rittal
Part number
4050335
Category
Alt Part Number
AS 4050.335

Product Information

Extended Description

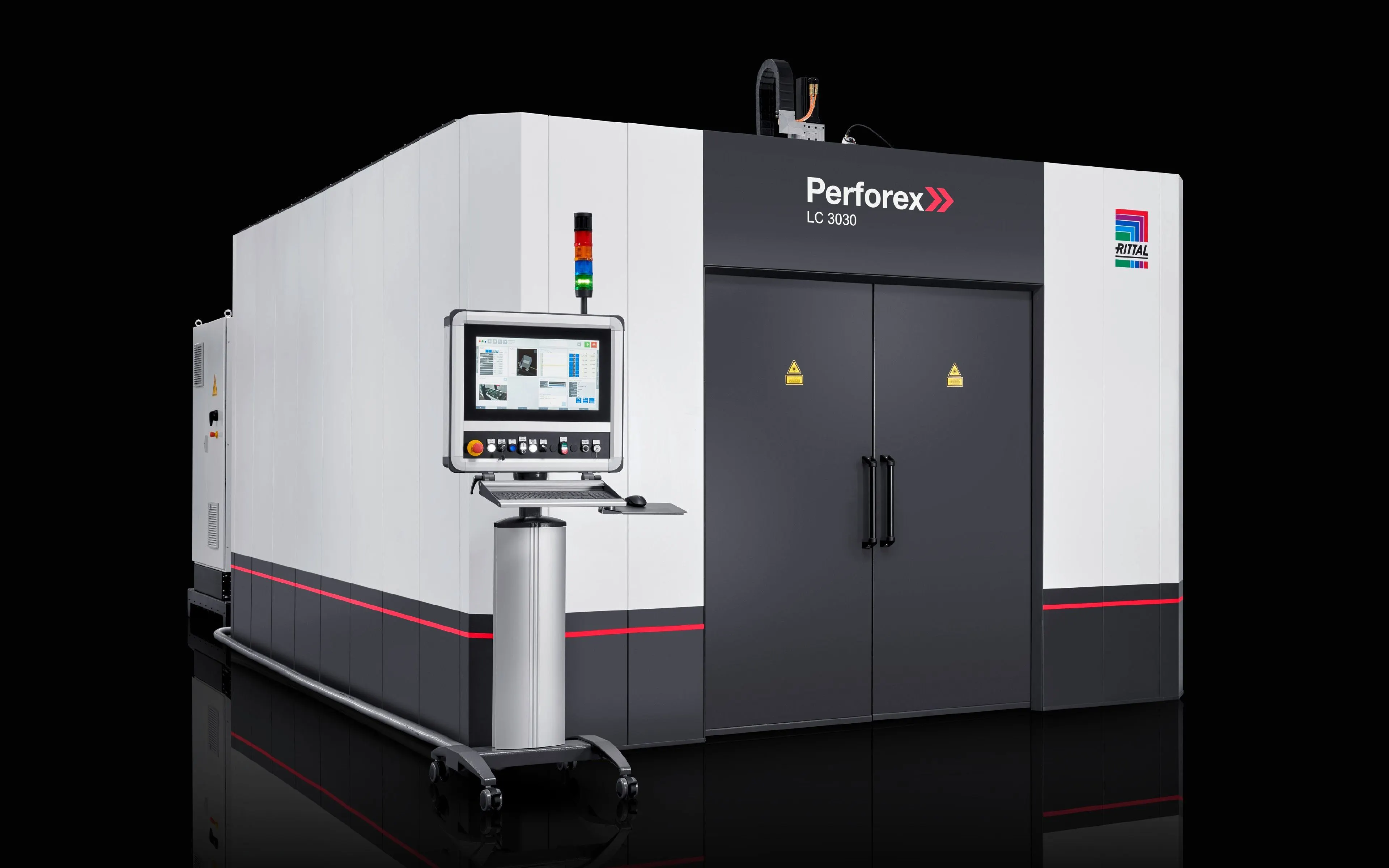

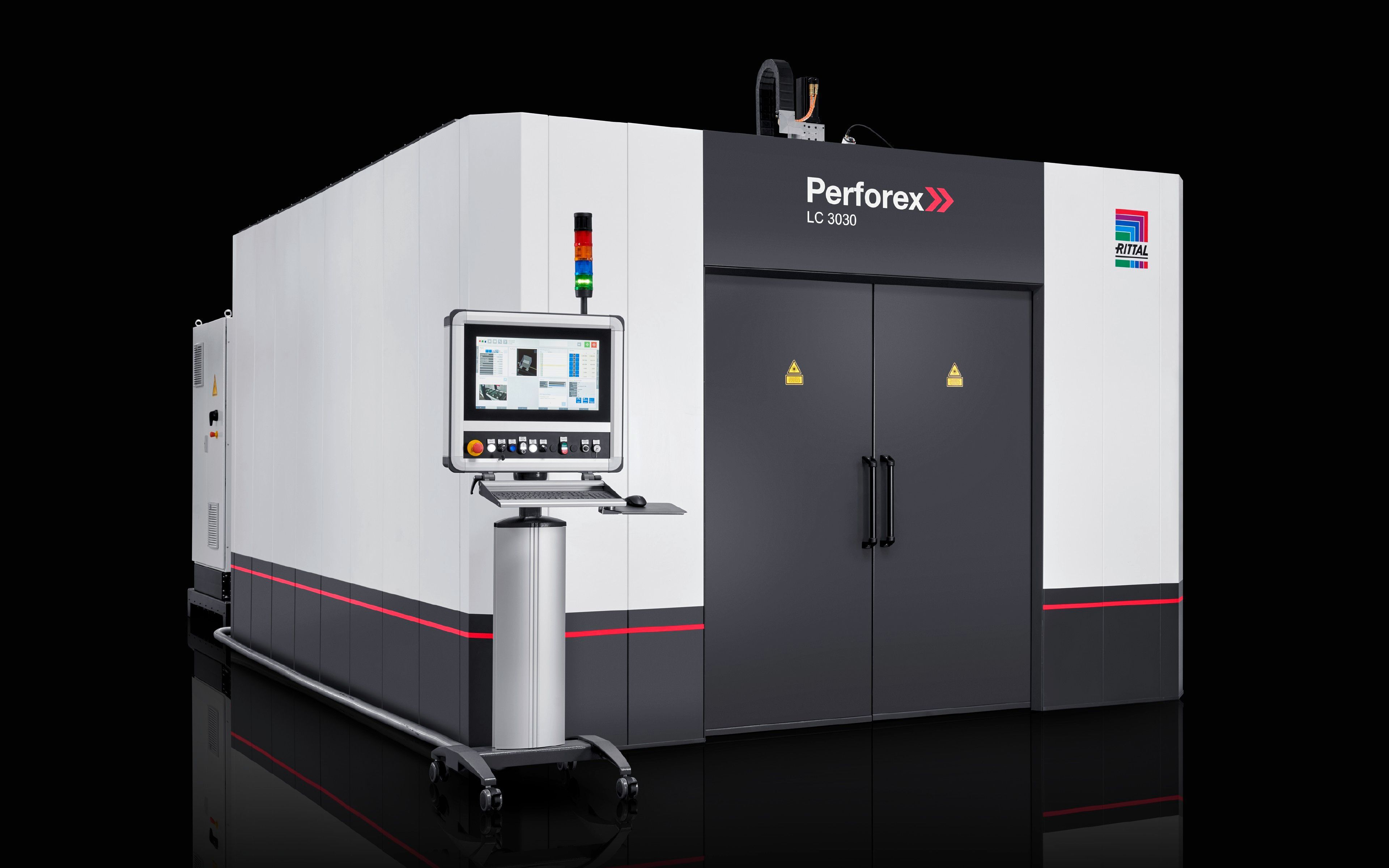

4050335 Rittal: Perforex laser centres are specially designed for the automated mechanical modification of standard enclosures. The Perforex LC specialises in 3D laser machining of cubes and contactless, low-vibration machining. Machining of mounting plates including tapped holes is also supported.
Article number
AS 4050.335
Design
US version
Product description
Perforex laser centres are specially designed for the automated mechanical modification of standard enclosures. The Perforex LC specialises in 3D laser machining of cubes and contactless, low-vibration machining. Machining of mounting plates including tapped holes is also supported.
Benefits
3D enclosure machining without repositioning the workpiece
Technical specifications
Laser pointer (auxiliary laser), beam power laser class 1
Supply includes
Laser centre | Compressor | Machine housing | Filter system | Operating unit
Machinable material
Stainless steel
Machine controller
Workshop programming
Safety
Protective housing to achieve laser class 1. May be operated by properly trained personnel, no need for a laser specialist
Interfaces
EPLAN Pro Panel
Note
Safety roof (4050.317) for machine housing is mandatory if the machine can be viewed from above
Support area
Width: 3,900 mm | Height: 3,800 mm | Depth: 10,500 mm
Beam power max.
300 W (CW) or 3000 W (pulse)
Pulse energy (max.)
30 J
Duration of pulse, max.
50 µs at 300 W output
Wavelength
1,070 nm
Maximum machinable material thickness, sheet steel
3 mm
Maximum machinable material thickness, stainless steel
3 mm
Maximum machinable material thickness, aluminium
3 mm
Control voltage (DC)
24 V
Power consumption
3 kW
Rated operating voltage
400 V, 3~, 60 Hz
Max. machinable area of cubes
Width: 1,200 mm | Height: 800 mm | Depth: 2,250 mm
Support area
Width: 3,900 mm | Height: 3,800 mm | Depth: 10,500 mm
Packs of
1 pc(s).
Customs tariff number
84561190
EAN
4028177957541
ECLASS 8.0
36620404
