4050452
Part Number: 4050452
Product Information
Extended Description

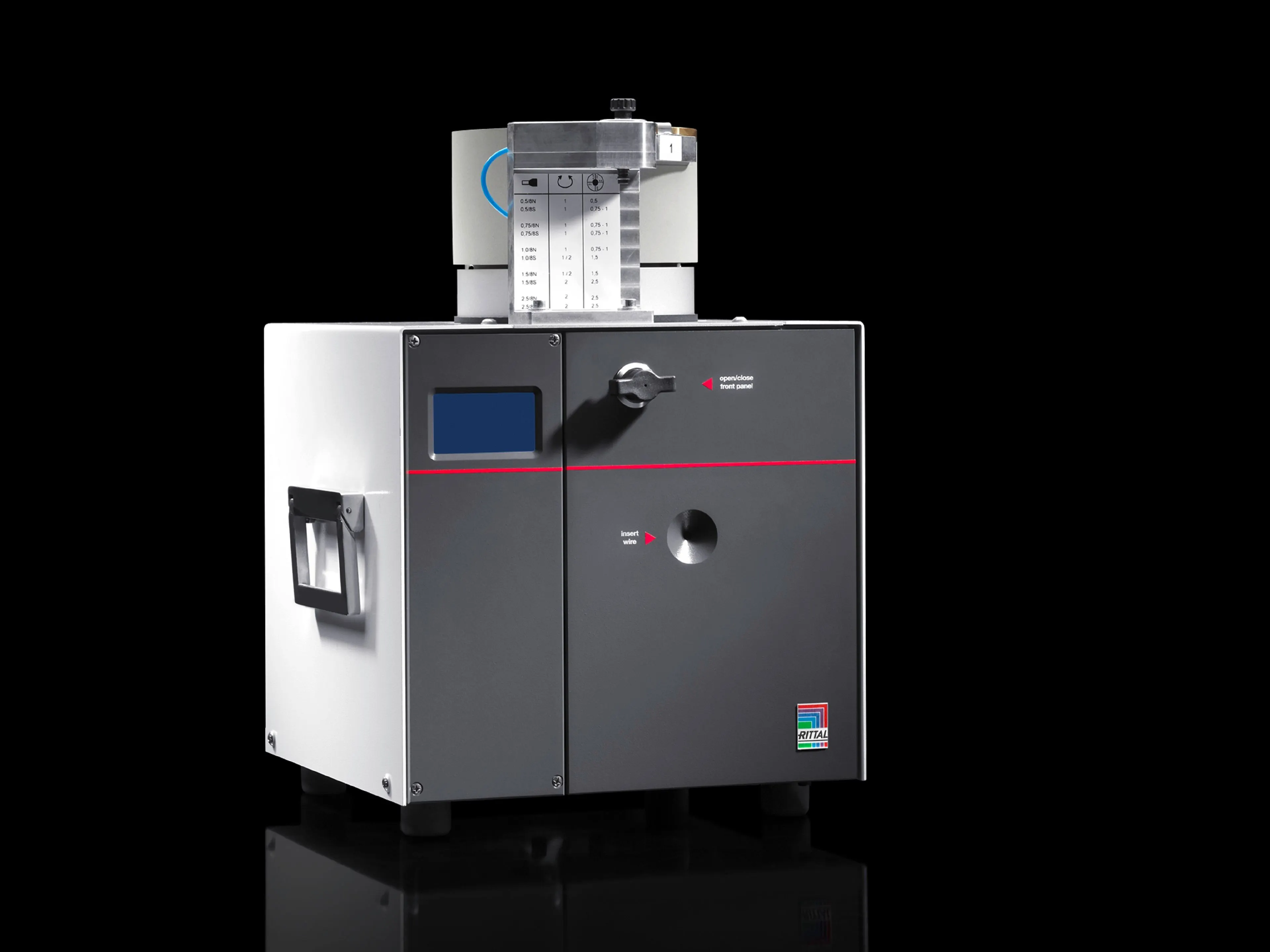

4050452 Rittal: Crimp machine L 8, 0,5-2,5mm²
Article number
AS 4050.452
Design
Touchscreen display
Product description
Electro-pneumatically driven wire stripping and crimping centre for loose, insulated wire end ferrules.
Benefits
Easy to operate
Technical specifications
Crimping range 0.5 - 2.5 mm² (AWG 20 - 14)
Supply includes
Crimping machine L8 | 1 vibratory bowl feeder 0.5 - 1.5 mm² | 1 vibratory bowl feeder 1.5 - 2.5 mm²
Note
The standard crimping form is trapezoid – others available on request
Dimensions
Width: 390 mm | Height: 460 mm | Depth: 330 mm
Compressed air connection
5.5 bar
Rated operating voltage
100 V - 240 V, 1~, 50 Hz/60 Hz
Apparent power
110 VA
Compression
Trapezoid crimp
Cycle time
1.5 s
Packs of
1 pc(s).
Weight/pack
31 kg
Customs tariff number
84798997
EAN
4028177804869
ETIM 9
EC002778
ETIM 8
EC002778
ECLASS 8.0
36600890
Product description
Crimp machine L 8, 0,5-2,5mm²
