4050454
Part Number: 4050454
Product Information
Extended Description

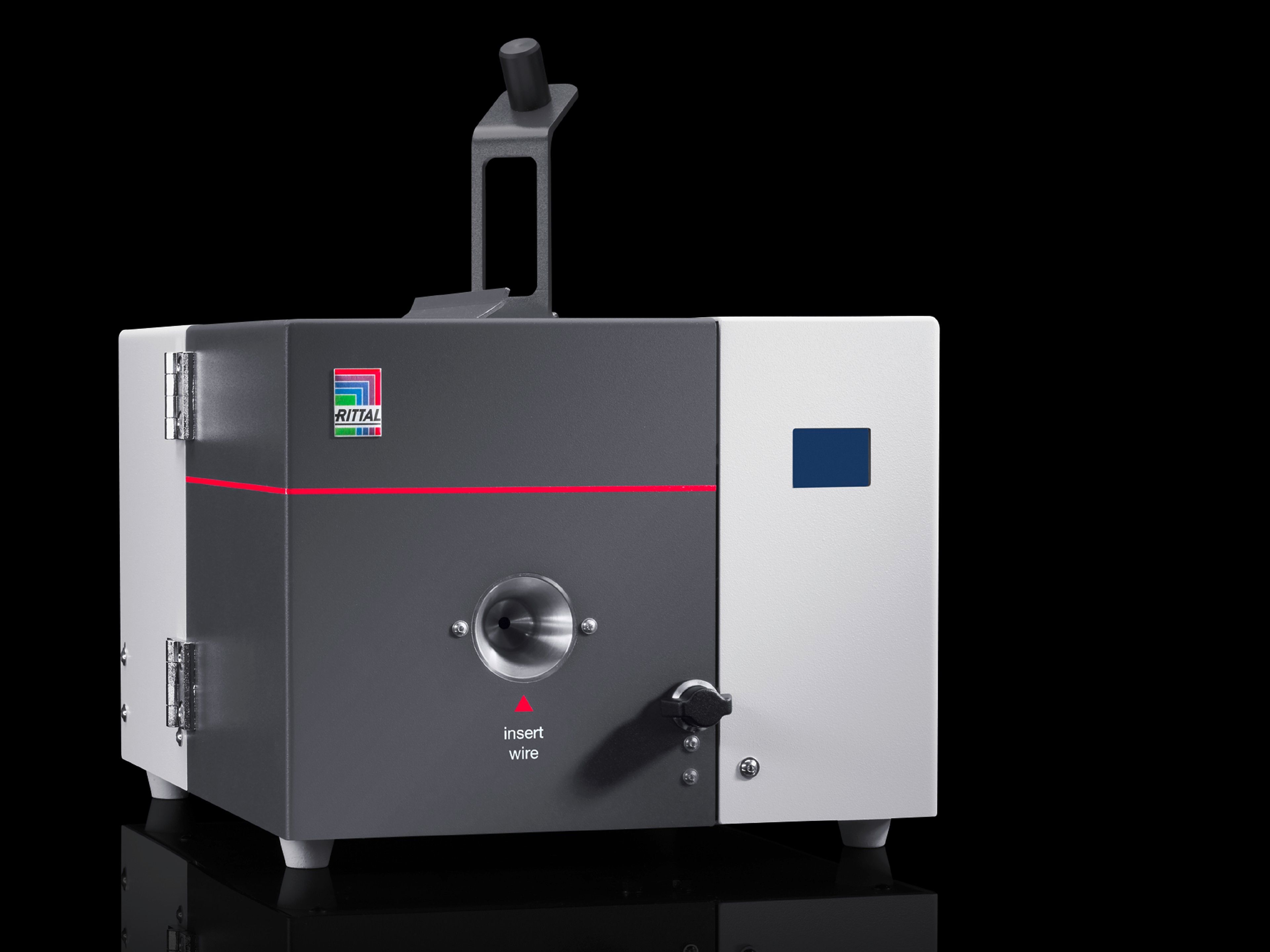

4050454 Rittal: Crimp machine R 8E, 0,5-2,5mm²
Article number
AS 4050.454
Design
Touchscreen display
Product description
Electrically powered wire stripping and crimping machine for taped wire end ferrules on a reel.
Benefits
Easy to operate
Technical specifications
Crimping range 0.5 - 2.5 mm² (AWG 20 - 14)
Note
The standard crimping form is trapezoid – others available on request
Dimensions
Width:Â 288 mm | Height:Â 230 mm | Depth:Â 345 mm
Rated operating voltage
100Â V - 240Â V, 1~, 50Â Hz/60Â Hz
Apparent power
100 VA
Compression
Trapezoid crimp
Cycle time
1.8 s
Packs of
1 pc(s).
Weight/pack
16 kg
Customs tariff number
84798997
EAN
4028177813465
ETIM 9
EC002778
ETIM 8
EC002778
ECLASS 8.0
36600890
Product description
Crimp machine R 8E, 0,5-2,5mm²
