4050456
Part Number: 4050456
Product Information
Extended Description

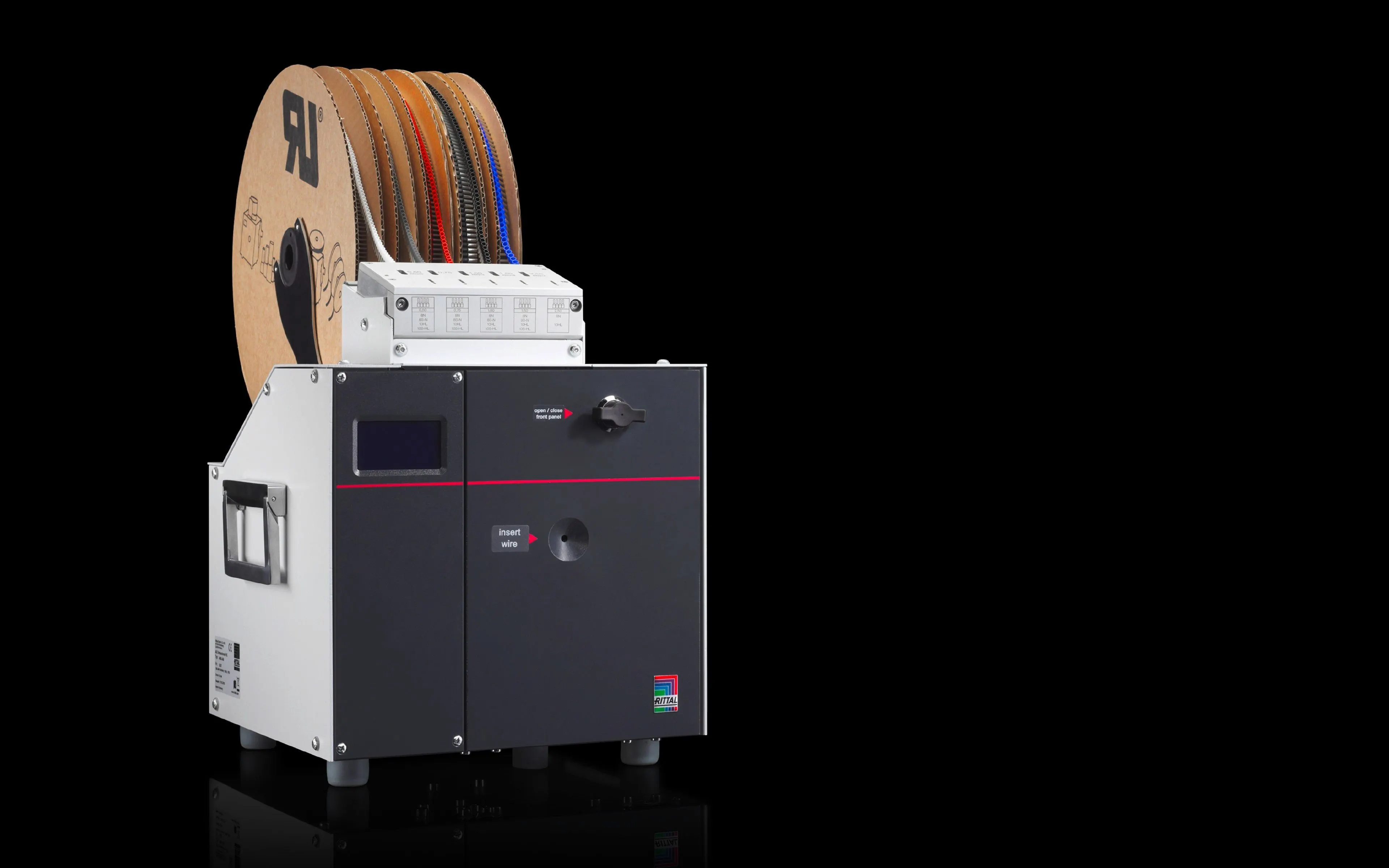

4050456 Rittal: RC crimping machine, insulation stripping and crimping, for processing 5 wire end ferrules
Article number
AS 4050.456
Design
Touchscreen display | Select the wire cross-section via touchscreen | Support may be fitted with a maximum of 23,000 wire end ferrules
Product description
|
Benefits
Easy to operate
Technical specifications
Crimping range 0.5 - 2.5 mm² (AWG 20 - 14)
Note
The standard crimping form is trapezoid – others available on request
Dimensions
Width: 335 mm | Height: 565 mm | Depth: 485 mm
Compressed air connection
5.5 bar
Rated operating voltage
100 V - 240 V, 1~, 50 Hz/60 Hz
Apparent power
16 VA
Compression
Trapezoid crimp
Cycle time
< 2 s
Packs of
1 pc(s).
Weight/pack
22 kg
Customs tariff number
84624900
EAN
4028177930865
ETIM 9
EC002778
ETIM 8
EC002778
ECLASS 8.0
17130101
Product description
RC crimping machine, insulation stripping and crimping, for processing 5 wire end ferrules
