4051205
Part Number: 4051205
Product Information
Extended Description

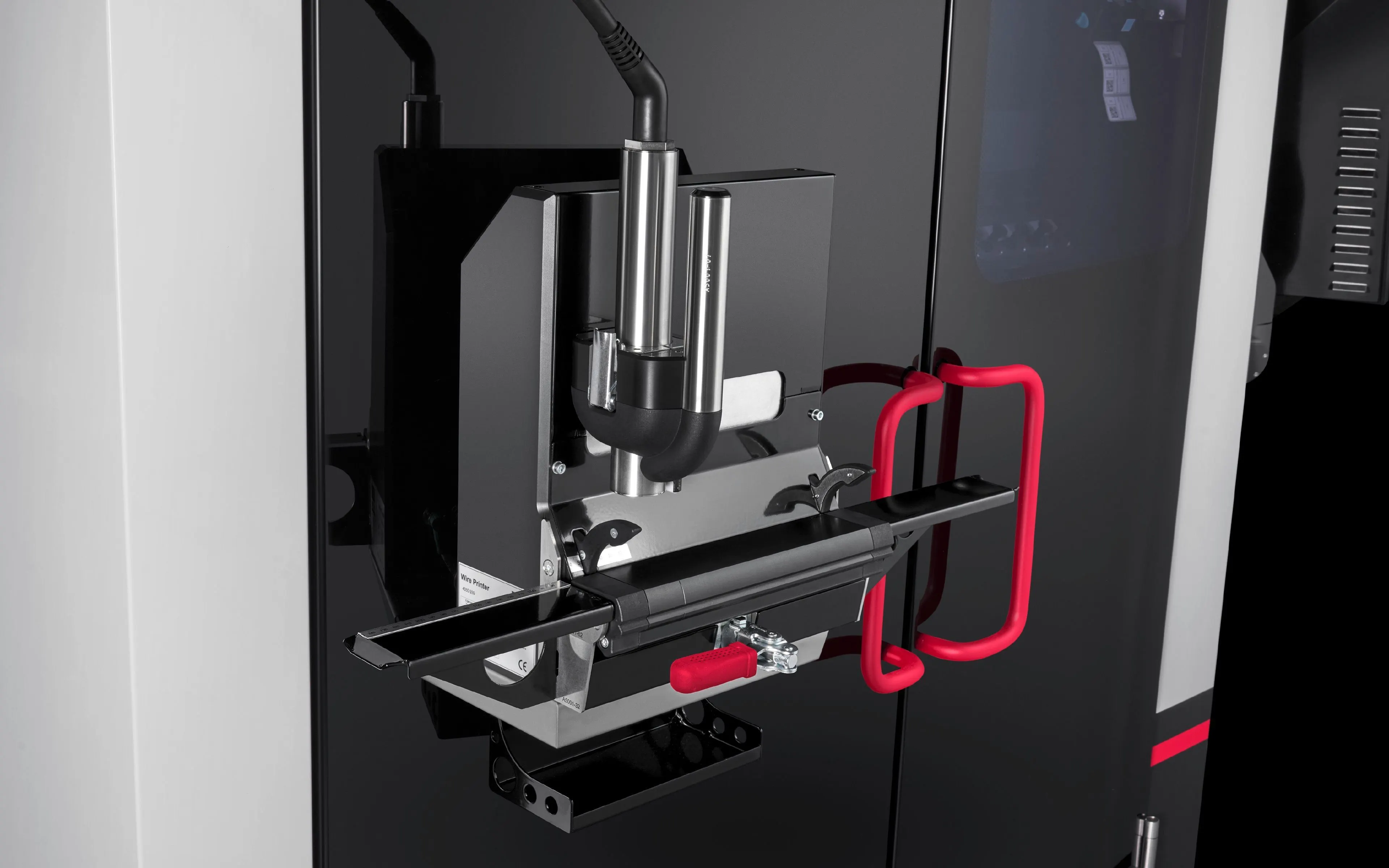

4051205 Rittal: The Wire Terminal WT C5 fully automated wire processing machine produces up to 36 different wires fully automatically, with zero manual intervention. Wire ends with cross-sections ranging from 0.5 mm² to 2.5 mm² may be processed fully automatically without retooling. This includes length-cutting, insulation-stripping, crimping and project-specific labelling of the wires.
Article number
AS 4051.205
Design
For fully automatic processing of wire lists for wire assembly | Suitable wire stores are selected depending on the number of wires
Product description
The Wire Terminal WT C5 fully automated wire processing machine produces up to 36 different wires fully automatically, with zero manual intervention. Wire ends with cross-sections ranging from 0.5 mm² to 2.5 mm² may be processed fully automatically without retooling. This includes length-cutting, insulation-stripping, crimping and project-specific labelling of the wires.
Benefits
Fully interlinked, from the E-CAD tool through to the production processes
Technical specifications
Wire stripping range: Partial stripping 6 - 20 mm (0.24 - 0.79 in.), infinitely variable and full stripping 2 - 20 mm (0.8 - 0.79 inc.), infinitely variable
Supply includes
Machine frame and encapsulation | Operating unit | Locator for wire labelling unit | Label printer for wire rail magazine identification | 1 x WT 16 vibratory bowl feeder for 0.5 mm² | 2 x WT 20 vibratory bowl feeders for 0.75/1.0 mm² | 2 x WT 29 vibratory bowl feeders for 1.5/2.5 mm²
Machinable material
Fine-wire copper cables to DIN VDE 0295 Category 5
Note
Please talk to your Rittal sales consultant about a bespoke machine configuration.
Machine options
Printer option, light blue 4051.013
Interfaces
EPLAN Pro Panel
Safety
The machine interior is fully encapsulated. The machine zone allows access from 4 sides, monitored via contactless safety limit switches on the bifold doors.
Dimensions
Width: 1,960 mm | Height: 2,255 mm | Depth: 2,255 mm
Compressed air supply min.
5 bar
Compressed air supply max.
7 bar
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Control voltage (DC)
24 V
Power consumption (approx.)
1 kW
Wires per hour approx.
285
Weight per wire store, unloaded
130 kg
Support area including 3 wire magazine
Width: 3,660 mm | Height: 2,250 mm | Depth: 5,159 mm
Packs of
1 pc(s).
Customs tariff number
84571090
EAN
4028177981225
ETIM 8
EC000000
ECLASS 8.0
18129090
