4051210

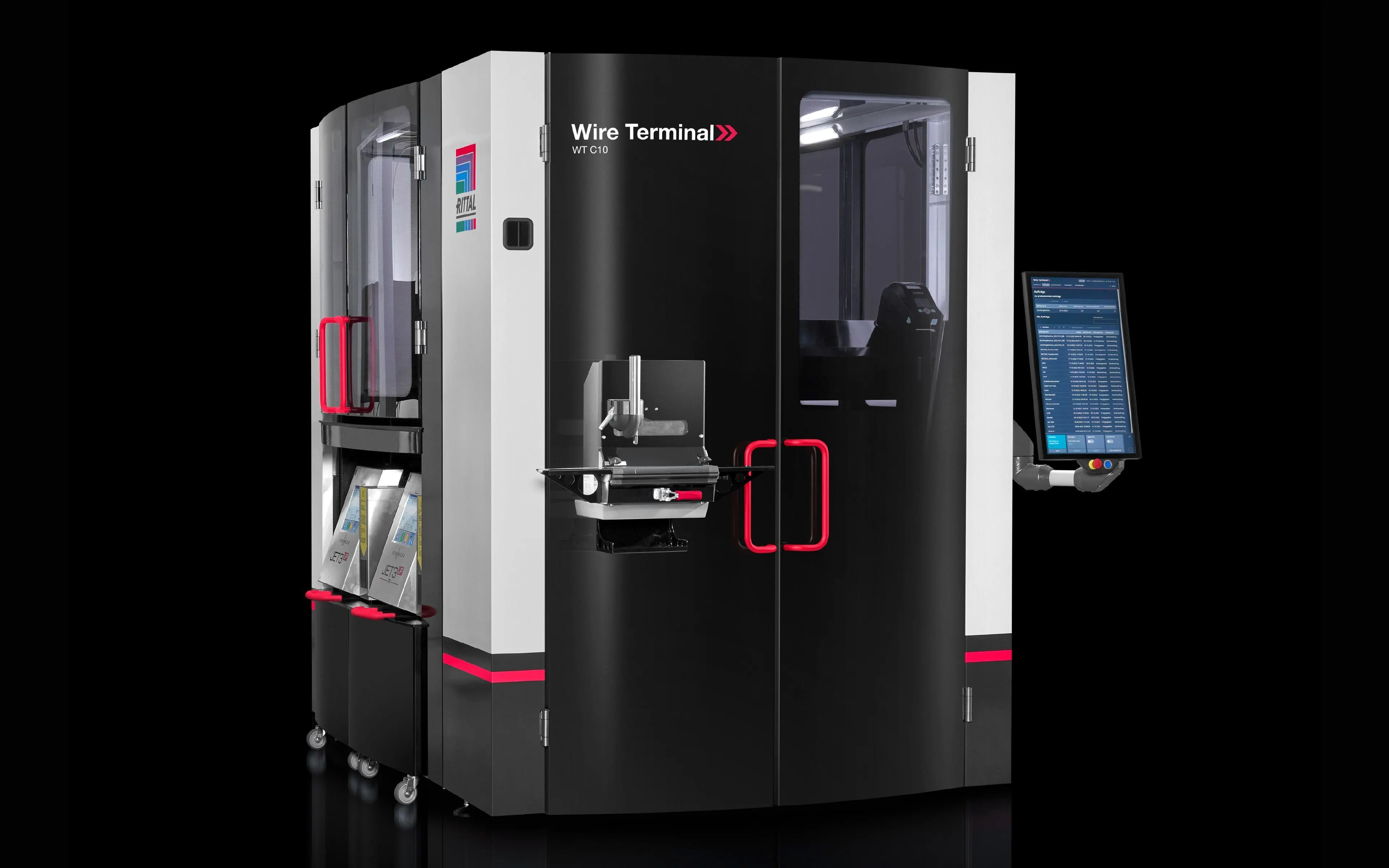

Part Number: 4051210
Product Information
Article number
AS 4051.210
Design
For fully automatic processing of wire lists for wire assembly | Suitable wire stores are selected depending on the number of wires
Benefits
Fully interlinked, from the E-CAD tool through to the production processes
Technical specifications
Wire stripping range: Partial stripping 6 - 20 mm (0.24 - 0.79 in.), infinitely variable and full stripping 2 - 20 mm (0.8 - 0.79 inc.), infinitely variable
Supply includes
Machine frame and encapsulation | Operating unit | Locator for wire labelling unit | Label printer for wire rail magazine identification | 1 x WT 16 vibratory bowl feeder for 0.5 mm² | 3 x WT 20 vibratory bowl feeders for 0.75/1.0 mm² | 3 x WT 29 vibratory bowl feeders for 1.5/2.5 mm² | 3 x WT 43 vibratory bowl feeders for 4.0/6.0 mm²
Machinable material
Fine-wire copper cables to DIN VDE 0295 Category 5
Note
Please talk to your Rittal sales consultant about a bespoke machine configuration.
Machine options
Printer option, light blue 4051.013
Interfaces
EPLAN Pro Panel
Safety
The machine interior is fully encapsulated. The machine zone allows access from 4 sides, monitored via contactless safety limit switches on the bifold doors.
Dimensions
Width: 1,960 mm | Height: 2,255 mm | Depth: 2,255 mm
Compressed air supply min.
5 bar
Compressed air supply max.
7 bar
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Control voltage (DC)
24 V
Power consumption (approx.)
1 kW
Wires per hour approx.
260
Support area including 3 wire magazine
Width: 3,660 mm | Height: 2,250 mm | Depth: 5,159 mm
Packs of
1 pc(s).
Customs tariff number
84571090
EAN
4028177981218
ETIM 8
EC000000
ECLASS 8.0
18129090
