4051697
Part Number: 4051697
Product Information
Extended Description

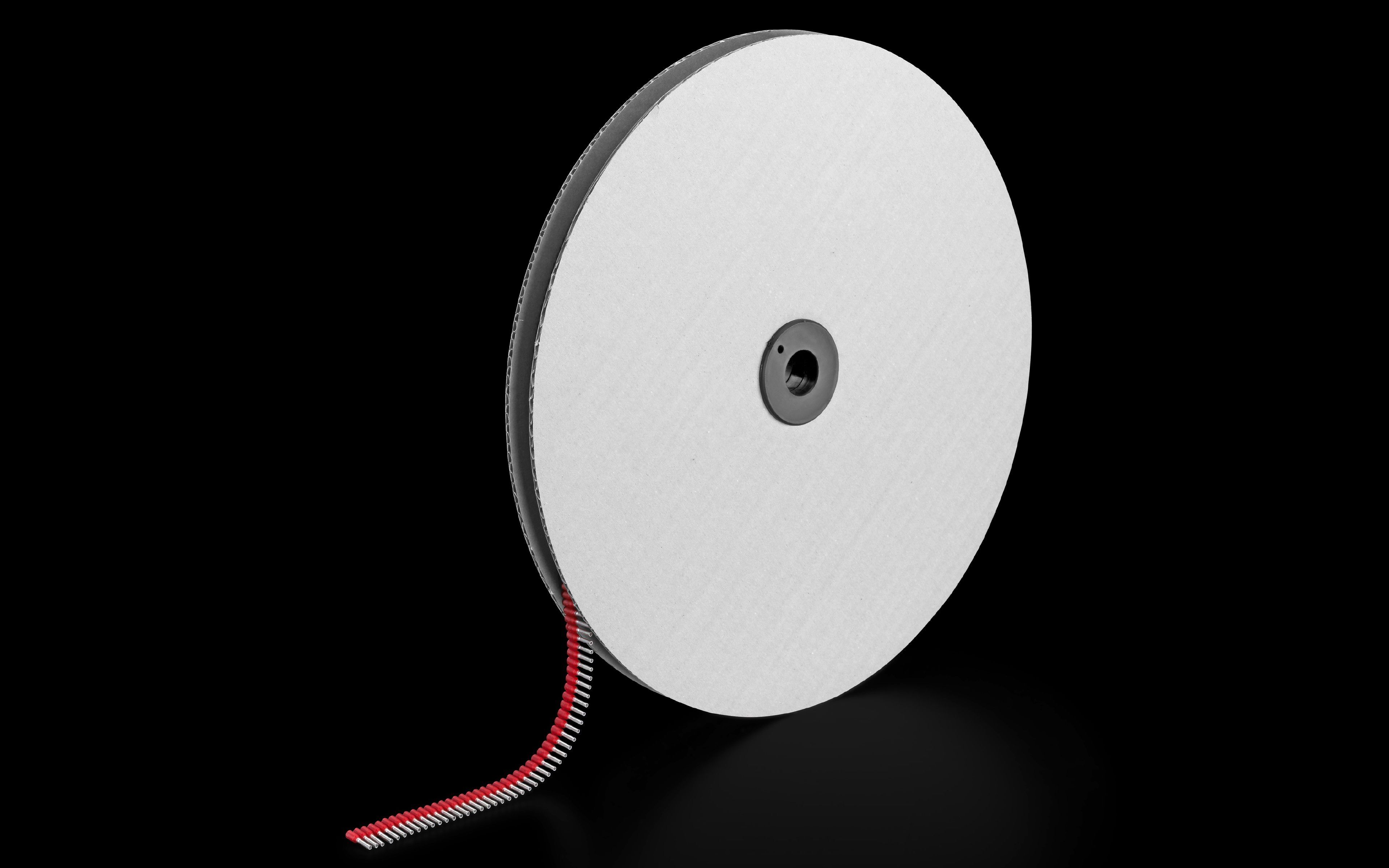

4051697 Rittal: Wire end ferrules 1.0 mm² x 10 mm AWG 18, packs of 5,000 pc(s)., colour: red, delivery form: on belt (in accordance with the DIN colour code)
Article number
AS 4051.697
Product description
With plastic collar.
Technical specifications
Heat-resistant to 105 °C
Material
E-Cu, galvanic tin-plated | Plastic collar: Polypropylene
Colour
Red
Length
10 mm
AWG
18
Internal diameter
3 mm
For cross-section
1 mm²
DIN colour code
Yes
Note
UL-certified in conjunction with the relevant tools, such as crimping machines.
Standards
AEH DIN 46228
Delivery form
Taped
Packs of
5,000 pc(s).
Weight/pack
5 kg
Customs tariff number
85369010
EAN
4028177938618
ETIM 9
EC000005
ETIM 8
EC000005
ECLASS 8.0
36659290
Product description
Wire end ferrules 1.0 mm² x 10 mm AWG 18, packs of 5,000 pc(s)., colour: red, delivery form: on belt (in accordance with the DIN colour code)
