4054002
Part Number: 4054002
Product Information
Extended Description

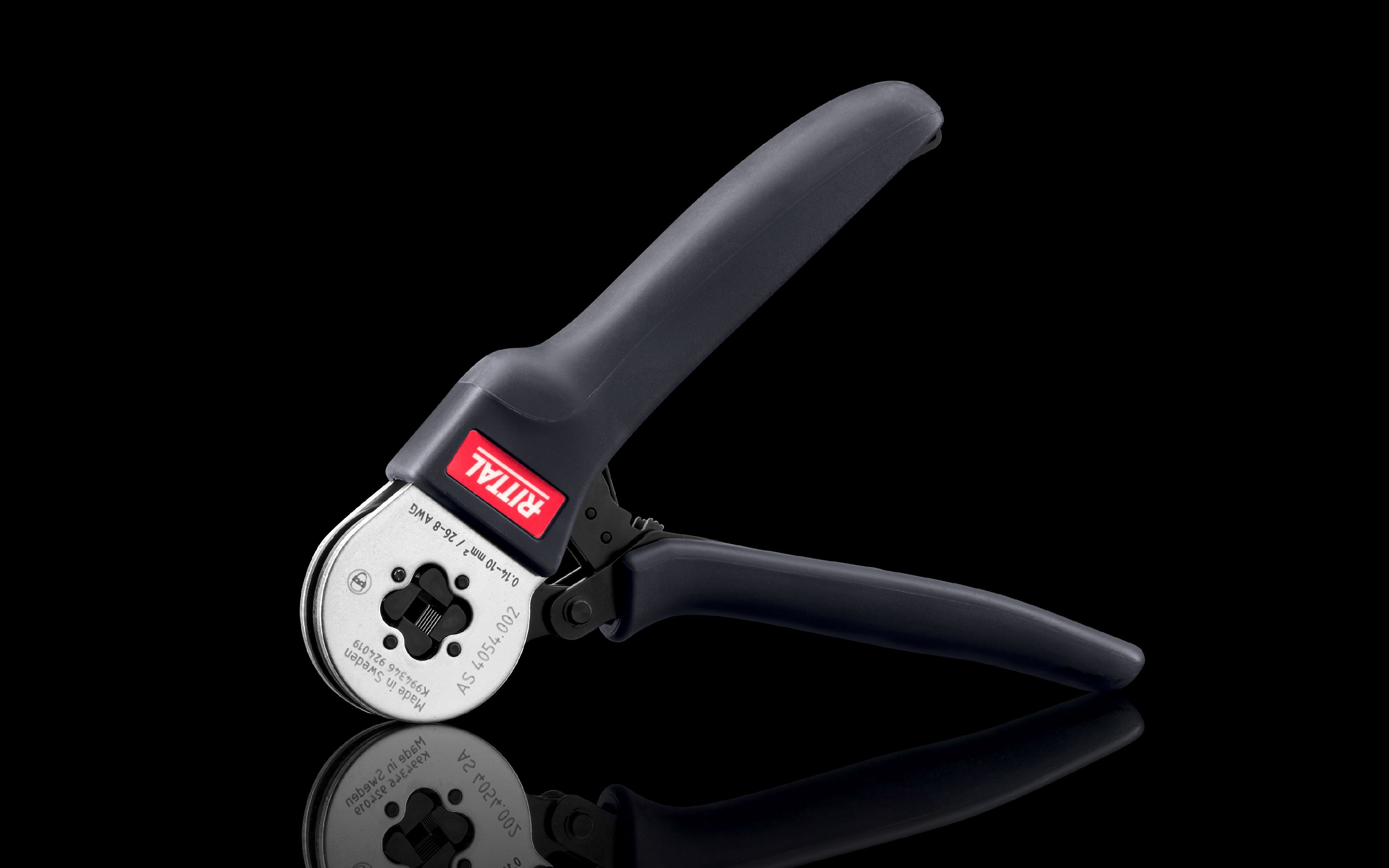

4054002 Rittal: AS crimping tool, square, for cross-section 0.14 – 10 mm²
Article number
AS 4054.002
Design
Straight
Product description
For use with wire end ferrules with no insulating collar to DIN 46228, Part 1 and wire end ferrules with insulating collar to DIN 46228, Part 4.
Benefits
Minimal effort required with large wire cross-sections
Material
High-quality special tool steel
Surface finish
Matt, plated
Colour
null
Compression
Square crimp
Direction of cable entry
Side
Dimensions
Length: 176 mm
AWG
26 ‐ 8
For cross-section
0.14 ‐ 10 mm²
Packs of
1 pc(s).
Weight/pack
0.362 kg
Customs tariff number
82032000
EAN
4028177930957
ETIM 9
EC000168
ETIM 8
EC000168
ECLASS 8.0
21043811
Product description
AS crimping tool, square, for cross-section 0.14 – 10 mm²
