4055070
Part Number: 4055070
Product Information
Extended Description

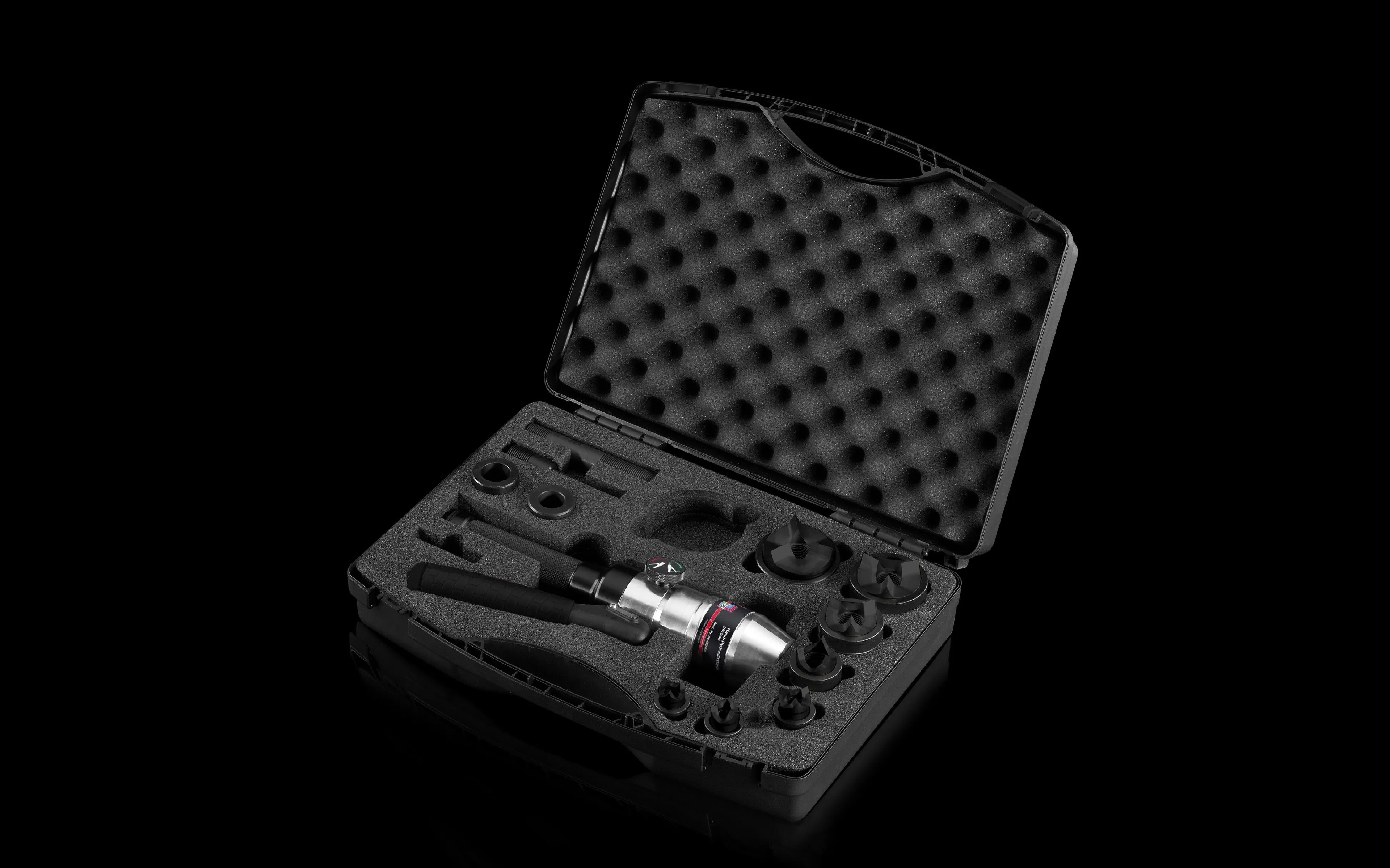

4055070 Rittal: Hand hydraulic punch set straight M16,20,25,32,40,50,63 mm
Article number
AS 4055.070
Design
This set includes the standard hole punches M16 to M63
Product description
|
Benefits
Extend tool life with a built-in overpressure valve
Supply includes
Manual hydraulic punch, straight | 7 splitter hole punches, triple splitting | Hydraulic screw Ø 19 mm | Hydraulic screw Ø 9.5 / 19 mm | HSS pilot drill Ø 10 mm | Spacer sleeve set (3-part) | Plastic case
Maximum machinable material thickness, sheet steel
2 mm | 2 mm | 2 mm | 3 mm | 3 mm | 3 mm | 3 mm
Ø punch
16.2 mm | 20.4 mm | 25.4 mm | 32.5 mm | 40.5 mm | 50.5 mm | 63.5 mm
For threads
M16
Packs of
1 pc(s).
Weight/pack
5.3 kg
Customs tariff number
82034000
EAN
4028177807945
ETIM 9
EC002121
ETIM 8
EC002121
ECLASS 8.0
21049046
Product description
Hand hydraulic punch set straight M16,20,25,32,40,50,63 mm
