4055080
Part Number: 4055080
Product Information
Extended Description

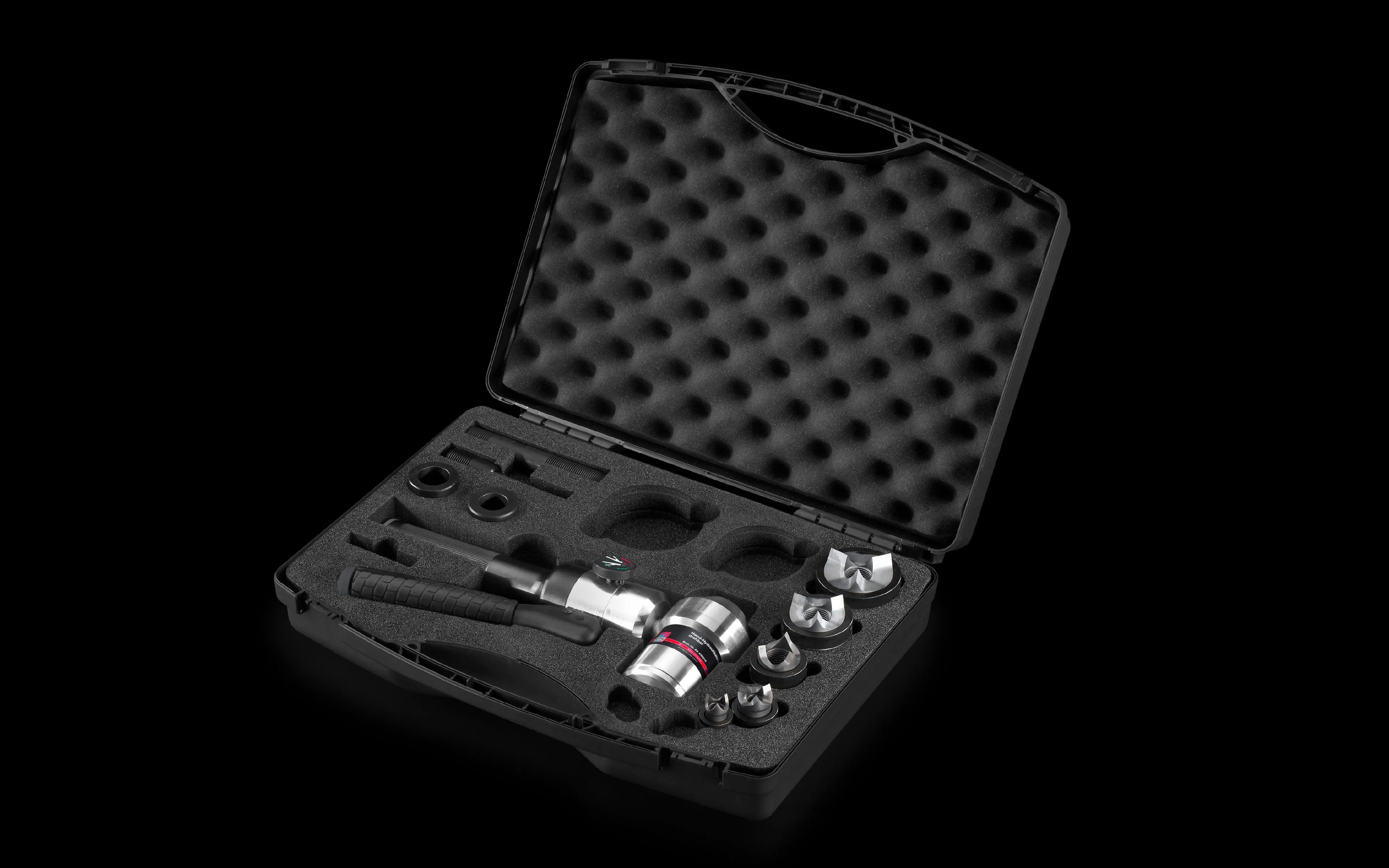

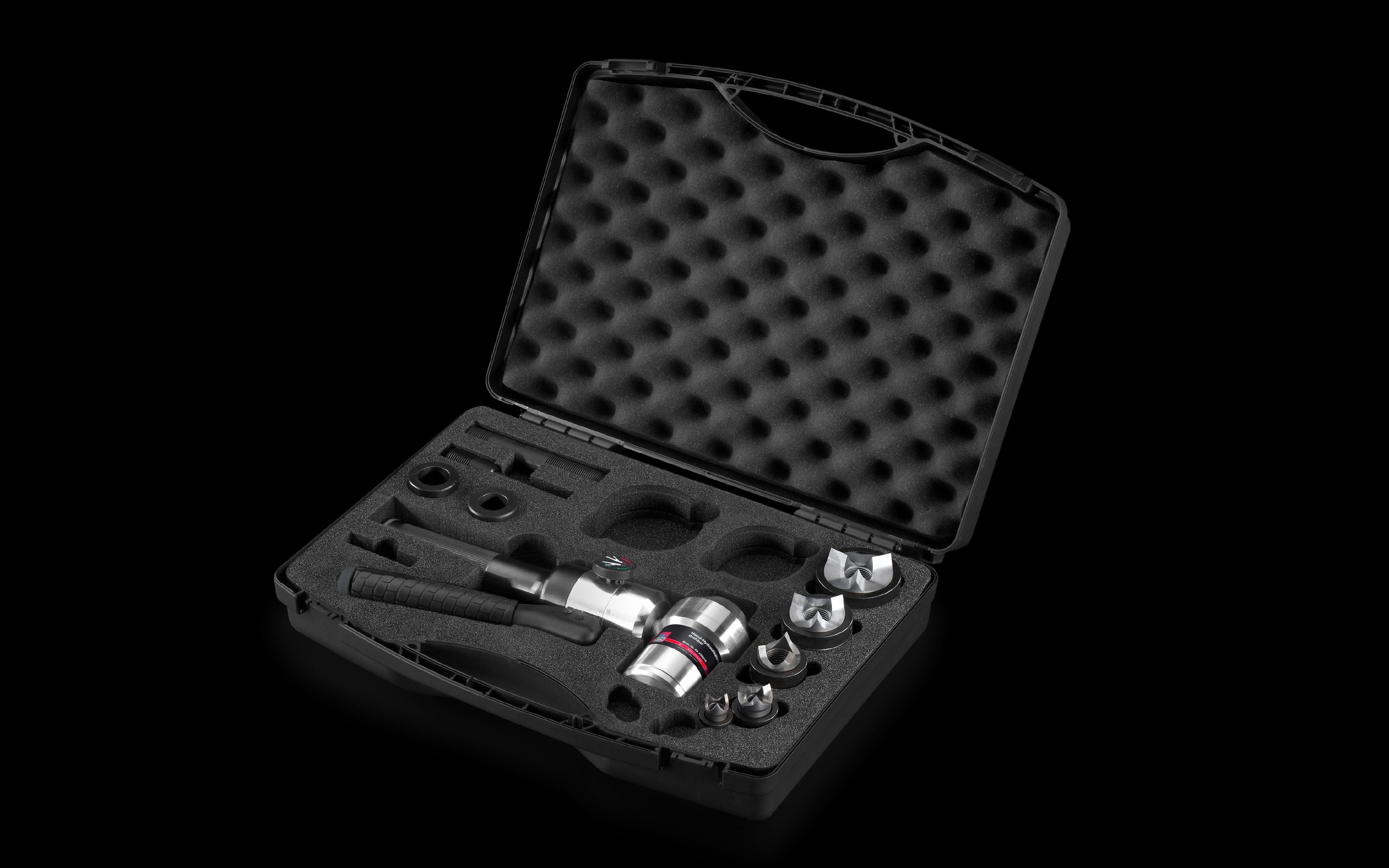

4055080 Rittal: Hand hydraulic punch set 90° M16,20,25,32,40 mm
Article number
AS 4055.080
Design
With 90° angled and 360° rotating cylinder head
Product description
|
Benefits
Extend tool life with a built-in overpressure valve
Supply includes
Manual hydraulic punch | 5 splitter hole punches, triple splitting | Hydraulic screw Ø 19 mm | Hydraulic screw Ø 9.5 / 19 mm | HSS pilot drill Ø 10 mm | Spacer sleeve set (3-part) | Plastic case
Maximum machinable material thickness, sheet steel
2 mm | 2 mm | 2 mm | 3 mm | 3 mm
Ø punch
16.2 mm | 20.4 mm | 25.4 mm | 32.5 mm | 40.5 mm
For threads
M16
Packs of
1 pc(s).
Weight/pack
4.1 kg
Customs tariff number
84678900
EAN
4028177807952
ETIM 8
EC002121
ETIM 7.0
EC002121
ECLASS 8.0
21049046
Product description
Hand hydraulic punch set 90° M16,20,25,32,40 mm
