4055180
Part Number: 4055180
Manufacturer
Rittal
Part number
4055180
Category
Alt Part Number
AS 4055.180
Product Information
Extended Description

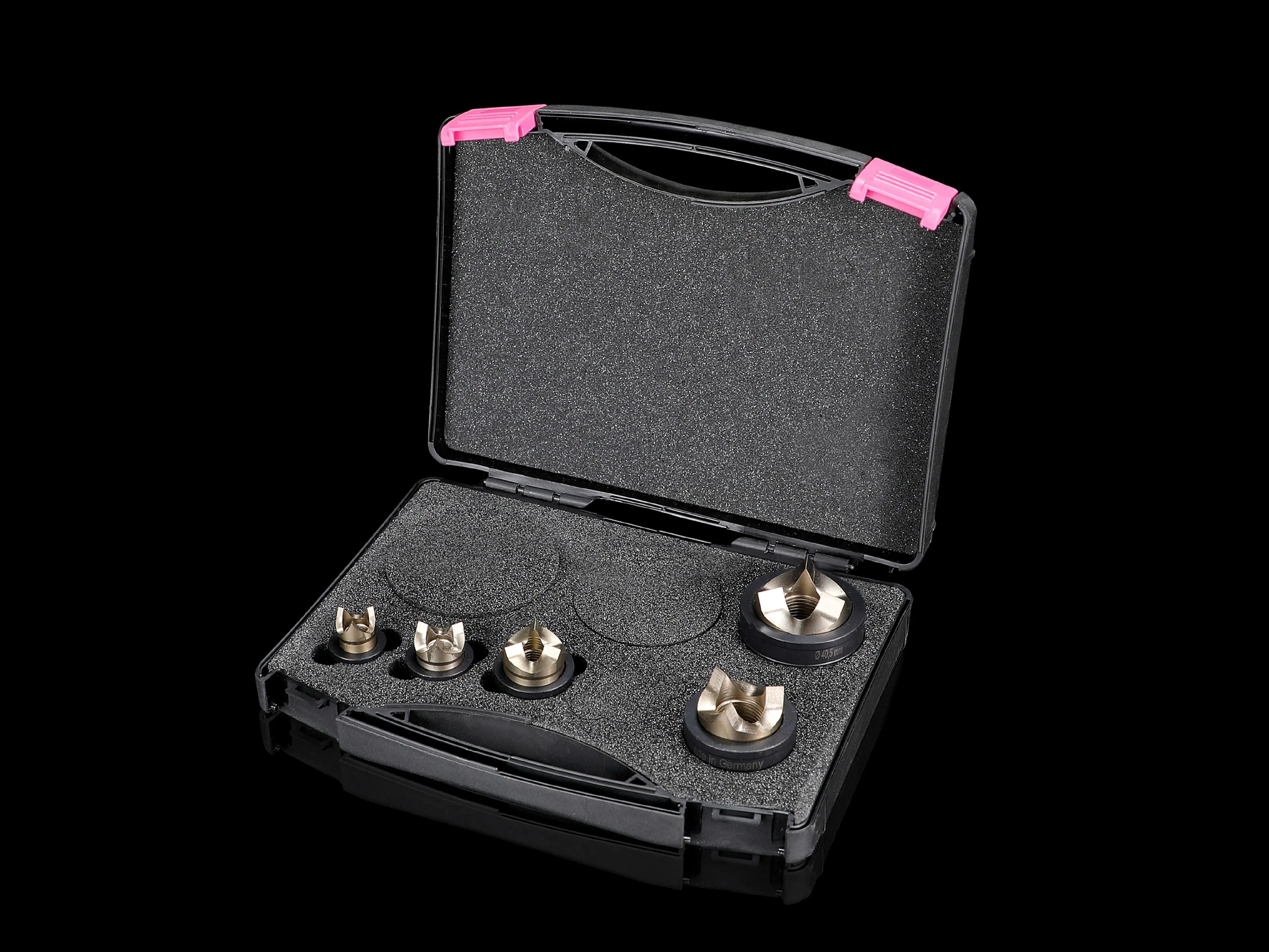

4055180 Rittal: Splitter hole punch set, metric for stainless steel, round, with triple splitting
Article number
AS 4055.180
Design
With triple splitting
Product description
For punching round cut-outs. The hole punch is operated with a wrench or hydraulic punch.
Supply includes
5 female dies | 5 male dies | Plastic case
Maximum machinable material thickness, stainless steel
2 mm | 2 mm | 2 mm | 2.5 mm | 2.5 mm
Ø punch
16.2 mm | 20.4 mm | 25.4 mm | 32.5 mm | 40.5 mm
For threads
M16
Note
When operating with wrenches, tension screws with ball bearings should be used.
Suitable for hydraulic bolt order number
4055.665
Packs of
1 pc(s).
Weight/pack
0.849 kg
Customs tariff number
82034000
EAN
4028177808171
ETIM 9
EC002121
ETIM 8
EC002121
ECLASS 8.0
21049047
Product description
Splitter hole punch set, metric for stainless steel, round, with triple splitting
