4055225
Part Number: 4055225
Manufacturer
Rittal
Part number
4055225
Category
Alt Part Number
AS 4055.225
Product Information
Extended Description

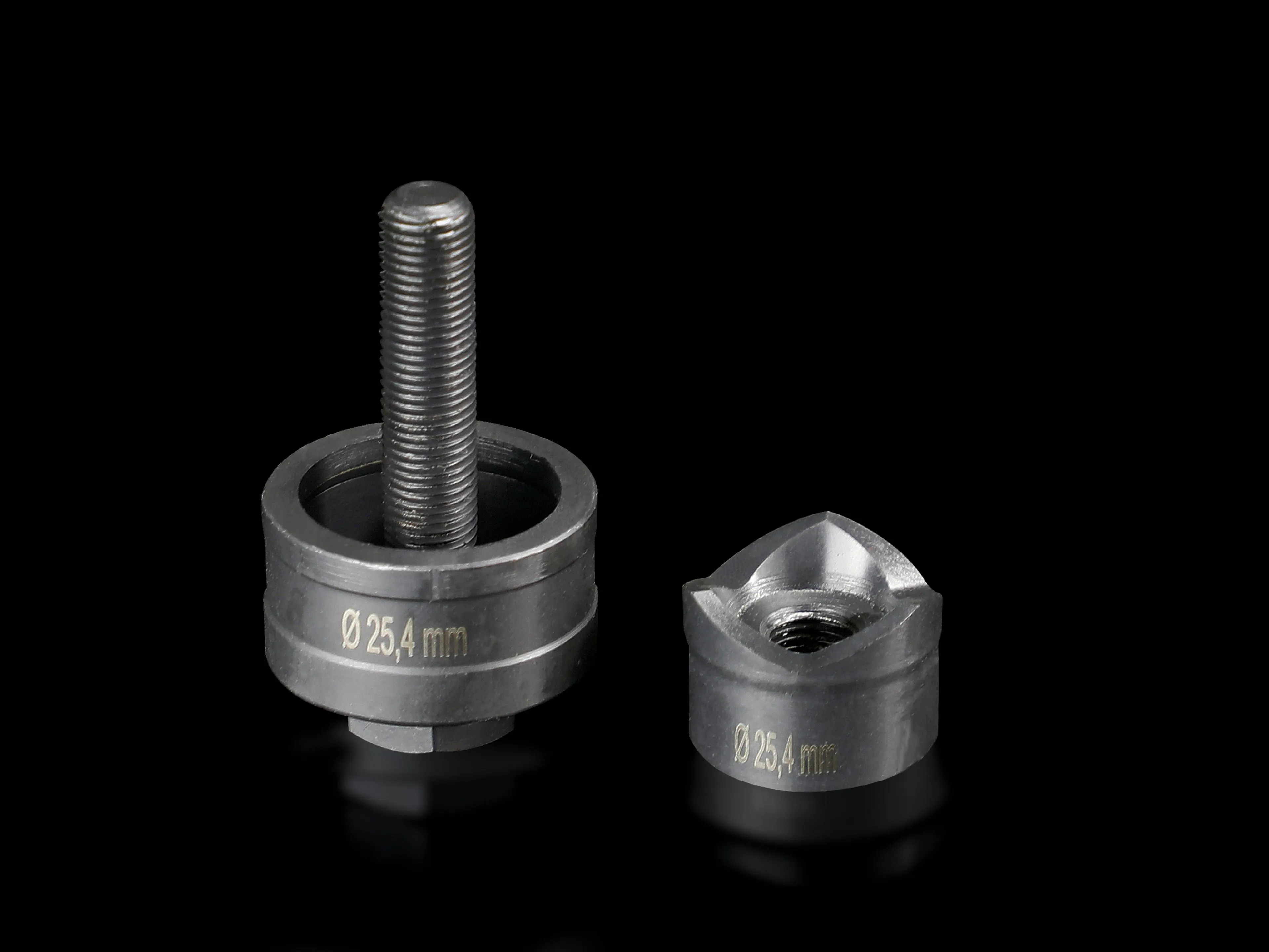

4055225 Rittal: Sheet metal punch round Ø 25,4 mm
Article number
AS 4055.225
Design
With 3 cutting points
Product description
For punching round cut-outs. The hole punch is operated with a wrench or hydraulic punch.
Supply includes
Female dies | Male dies | Tension screw without ball bearing
Maximum machinable material thickness, sheet steel
2 mm
Ø punch
25.4 mm
For threads
M25
Note
When operating with wrenches, tension screws with ball bearings should be used.
Suitable for hydraulic bolt order number
4055.661
Tension screw (Ø x L)
9.5 x 50 mm
Hydraulic tension screw Ø
9.5 mm | 19 mm
Packs of
1 pc(s).
Weight/pack
0.142 kg
Customs tariff number
82073010
EAN
4028177808249
ETIM 9
EC000156
ETIM 8
EC000156
ECLASS 8.0
21049047
Product description
Sheet metal punch round Ø 25,4 mm
