4055240
Part Number: 4055240
Manufacturer
Rittal
Part number
4055240
Category
Alt Part Number
AS 4055.240
Product Information
Extended Description

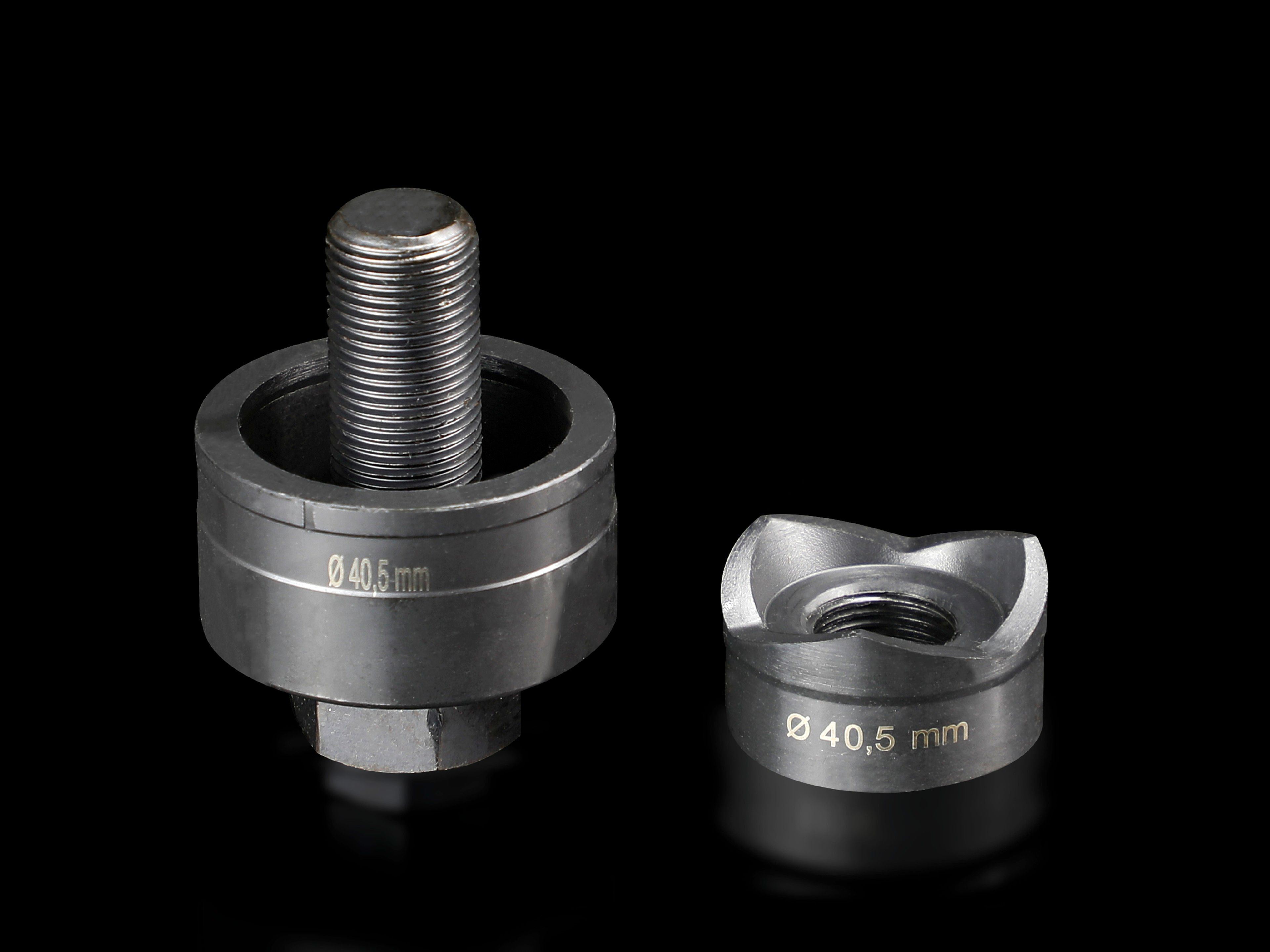

4055240 Rittal: Sheet metal punch round Ø 40,5 mm
Article number
AS 4055.240
Design
With 3 cutting points
Supply includes
Female dies | Male dies | Tension screw without ball bearing
Maximum machinable material thickness, sheet steel
3 mm
Ø punch
40.5 mm
For threads
M40
Note
When operating with wrenches, tension screws with ball bearings should be used.
Suitable for hydraulic bolt order number
4055.663
Tension screw (Ø x L)
19 x 55 mm
Hydraulic tension screw Ø
19 mm
Packs of
1 pc(s).
Weight/pack
0.522 kg
Customs tariff number
82073010
EAN
4028177808300
ETIM 9
EC000156
ETIM 8
EC000156
ECLASS 8.0
21049047
Product description
Sheet metal punch round Ø 40,5 mm
