4055250
Part Number: 4055250
Manufacturer
Rittal
Part number
4055250
Category
Alt Part Number
AS 4055.250
Product Information
Extended Description

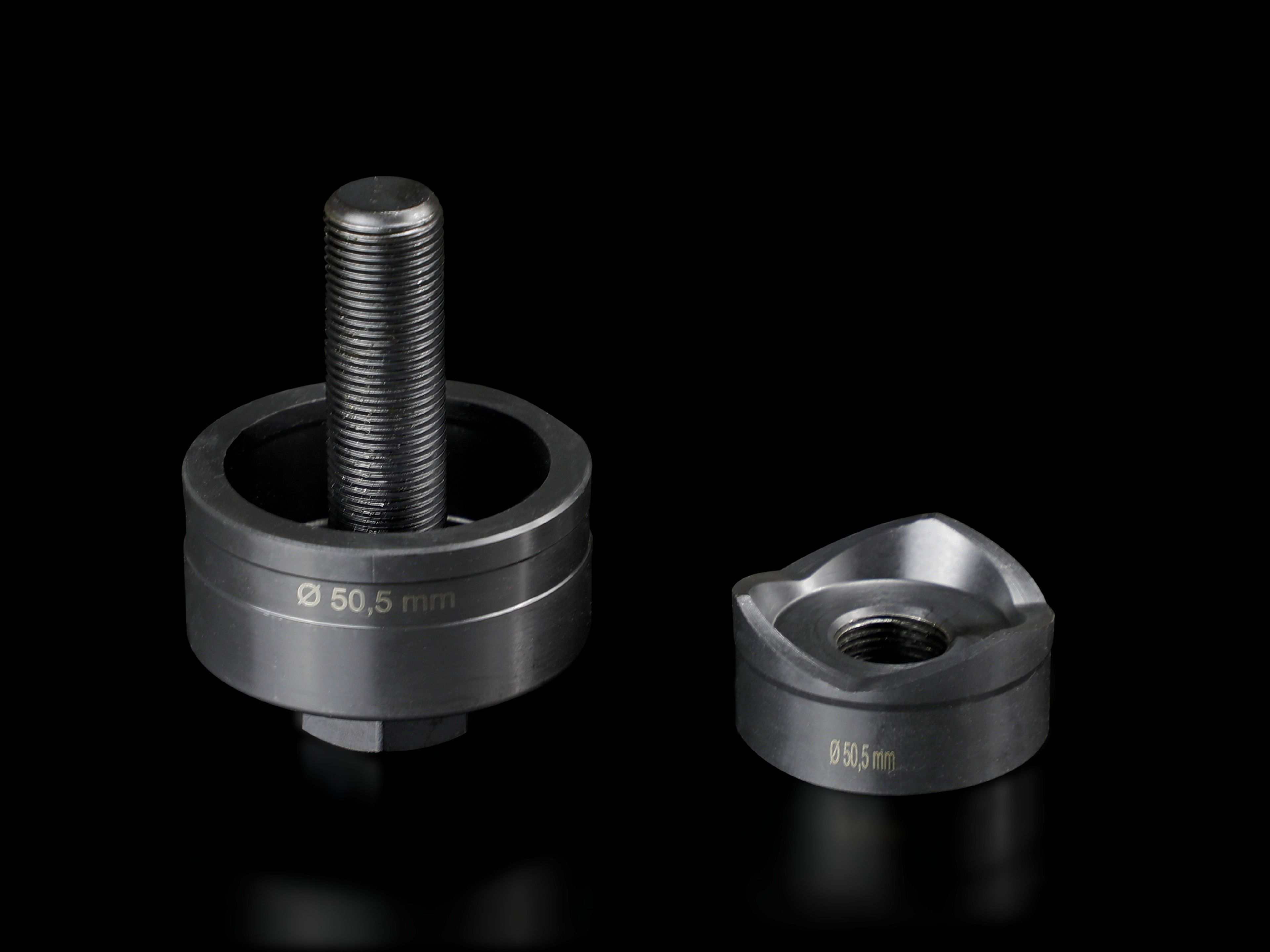

4055250 Rittal: Sheet metal punch round Ø 50,5 mm
Article number
AS 4055.250
Design
With 3 cutting points
Product description
For punching round cut-outs. The hole punch is operated with a wrench or hydraulic punch.
Supply includes
Female dies | Male dies | Tension screw without ball bearing
Maximum machinable material thickness, sheet steel
3 mm
Ø punch
50.5 mm
For threads
M50
Note
When operating with wrenches, tension screws with ball bearings should be used.
Suitable for hydraulic bolt order number
4055.663
Tension screw (Ø x L)
19 x 75 mm
Hydraulic tension screw Ø
19 mm
Packs of
1 pc(s).
Weight/pack
0.823 kg
Customs tariff number
82073010
EAN
4028177808348
ETIM 9
EC000156
ETIM 8
EC000156
ECLASS 8.0
21049047
Product description
Sheet metal punch round Ø 50,5 mm
