4055480
Part Number: 4055480
Manufacturer
Rittal
Part number
4055480
Category
Alt Part Number
AS 4055.480
Product Information
Extended Description
4055480 Rittal: Sheet metal punches set, metric Ø 16,2/20,4/25,4/32,5/40,5
Article number
AS 4055.480
Design
With 3 cutting points
Product description
For punching round cut-outs. The hole punch is operated with a wrench or hydraulic punch.

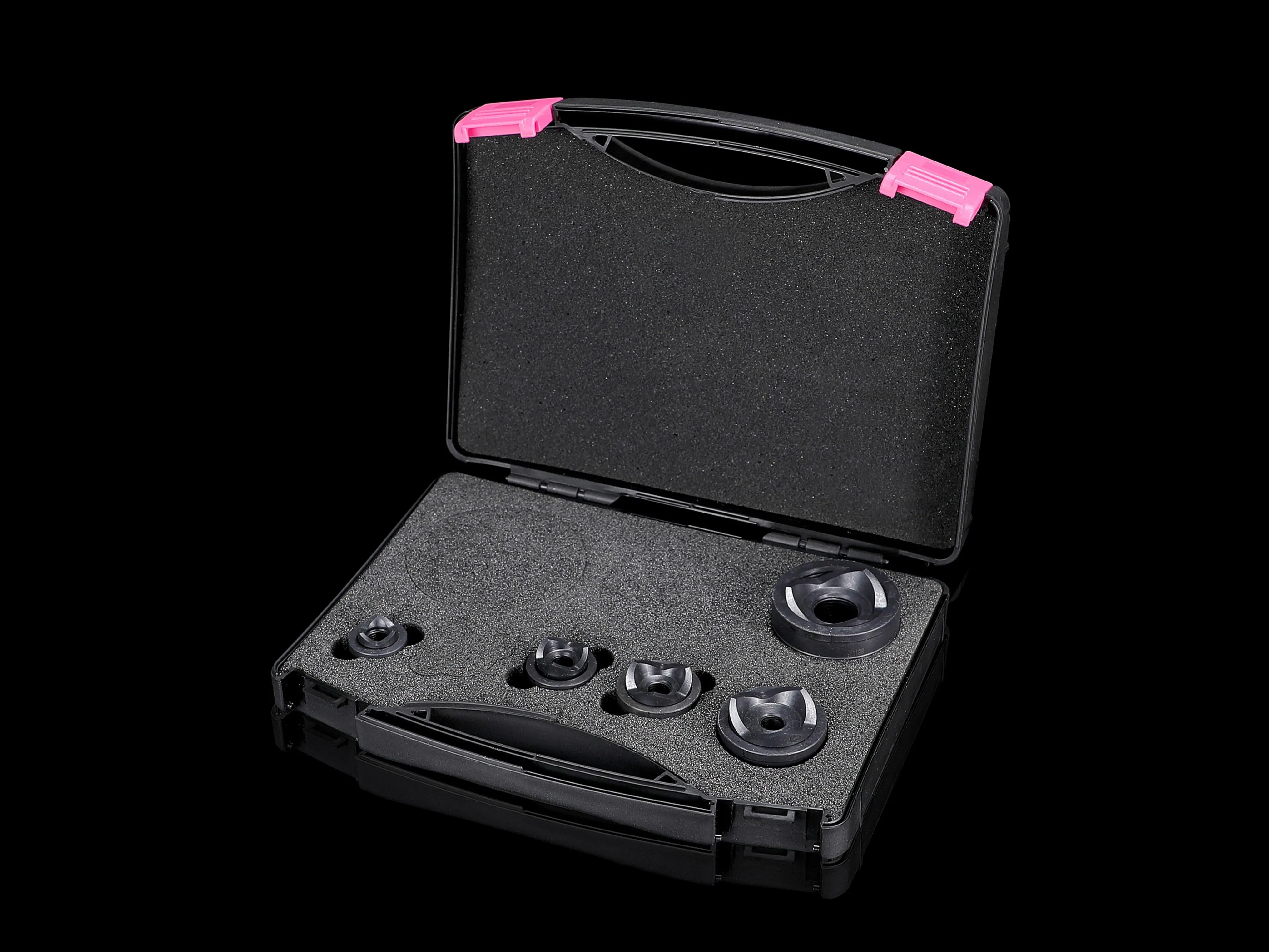

Supply includes
5 female dies | 5 male dies | Plastic case
Maximum machinable material thickness, sheet steel
2 mm | 2 mm | 2 mm | 2 mm | 3 mm
Ø punch
16.2 mm | 20.4 mm | 25.4 mm | 32.5 mm | 40.5 mm
For threads
M16
Note
When operating with wrenches, tension screws with ball bearings should be used.
Suitable for hydraulic bolt order number
4055.661
Packs of
1 pc(s).
Weight/pack
0.95 kg
Customs tariff number
82073010
EAN
4028177808607
ETIM 9
EC002121
ETIM 8
EC002121
ECLASS 8.0
21049047
Product description
Sheet metal punches set, metric Ø 16,2/20,4/25,4/32,5/40,5
