4055512
Part Number: 4055512
Manufacturer
Rittal
Part number
4055512
Category
Alt Part Number
AS 4055.512
Product Information
Extended Description

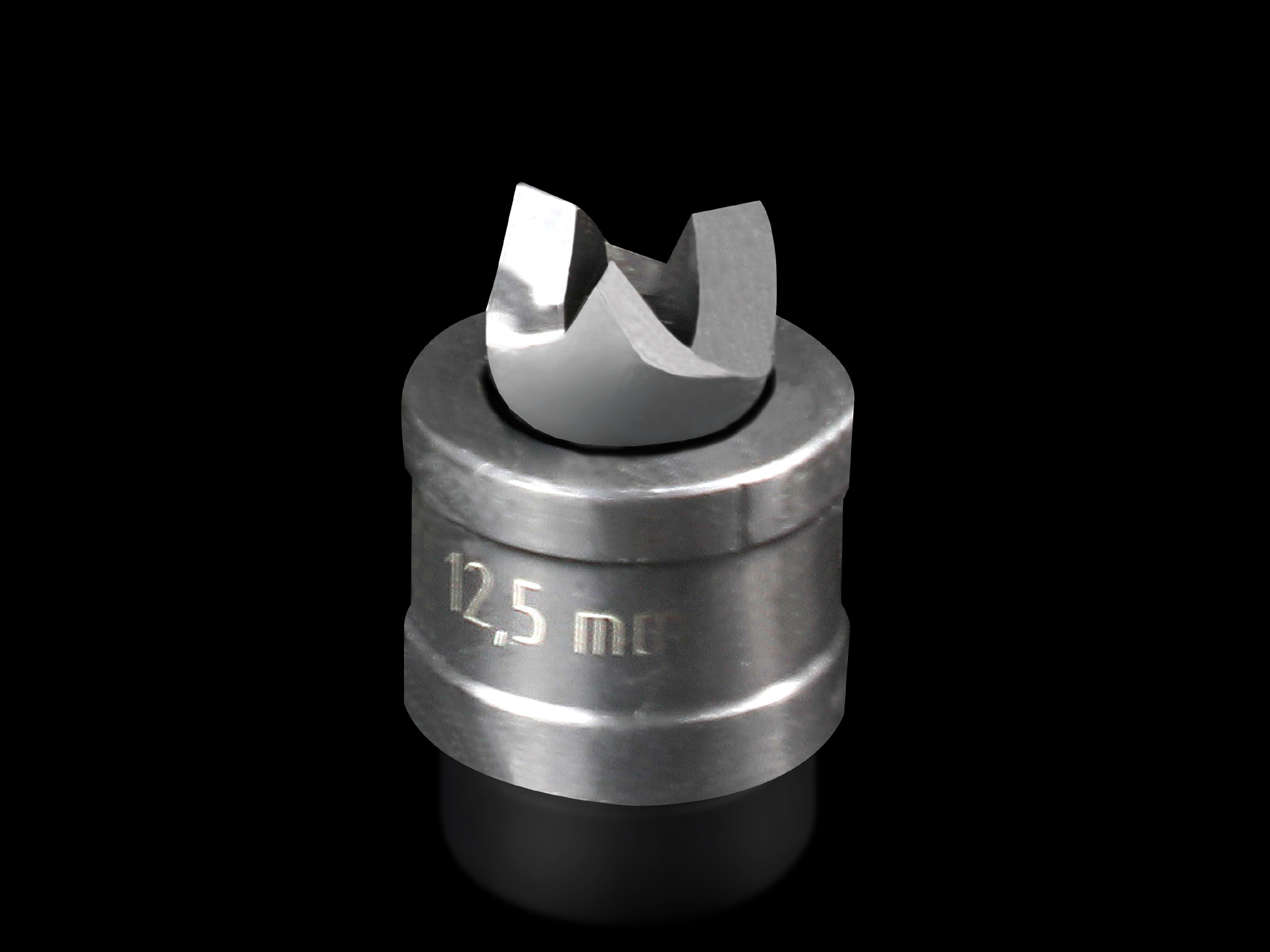

4055512 Rittal: Splitter hole punch, round for sheet steel, with triple splitting
Article number
AS 4055.512
Design
With triple splitting
Product description
For punching round cut-outs. The hole punch is operated with a wrench or hydraulic punch.
Supply includes
Female dies | Male dies
Maximum machinable material thickness, sheet steel
1.5 mm
Ø punch
12.5 mm
For threads
M12
Note
When operating with wrenches, tension screws with ball bearings should be used.
Suitable for hydraulic bolt order number
4055.660
Tension screw (Ø x L)
6 x 40 mm
Hydraulic tension screw Ø
6 mm | 19 mm
Packs of
1 pc(s).
Weight/pack
0.034 kg
Customs tariff number
82034000
EAN
4028177808621
ETIM 9
EC000156
ETIM 8
EC000156
ECLASS 8.0
21049047
Product description
Splitter hole punch, round for sheet steel, with triple splitting
