4055800
Part Number: 4055800
Manufacturer
Rittal
Part number
4055800
Category
Alt Part Number
AS 4055.800
Product Information
Extended Description

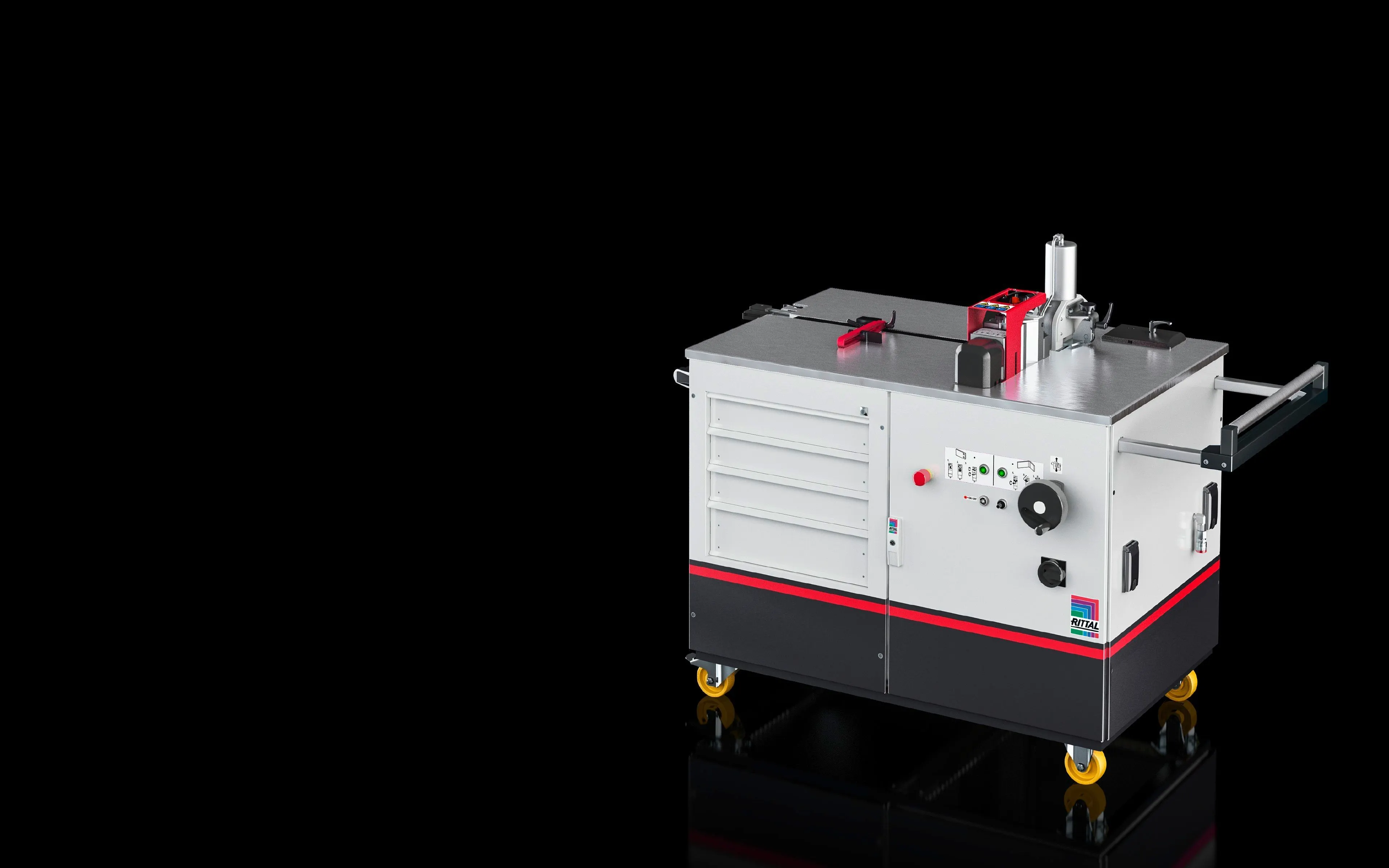

4055800 Rittal: CW 120 – M mobile busbar machining. The CW 120 – M mobile station is ideal for bending, punching and cutting busbars.
Article number
AS 4055.800
Design
Electric protractor | Mandrel R10 | Bending die | External 230 V power inlet | Pull-out side support extension for long rails | External hydraulic connection for almost all machining options | 4 castors (2 lockable) | Drawer pull-outs | Integral hydraulic pump | Laser pointer (auxiliary laser), beam power laser class 1 | Length end stop, pull-out
Product description
The mobile product solution for busbar machining is ideal for the precise, fast and ergonomic bending, punching and cutting of busbars directly at your workstation. The integral precision laser facilitates the cutting and bending process.
Benefits
High level of bending and punching accuracy
Supply includes
Busbar machining, mobile CW 120-M | Foot-switch
Machinable material
Copper
Note
With a Z bend, the length of the short side depends on the material thickness
Machine dimensions
Width: 1,380 mm | Height: 1,270 mm | Depth: 945 mm
Contact surface
Width: 1,211 mm | Depth: 811 mm
Working height
974 mm
Power consumption
2.2 kW
Rated operating voltage
230 V, 50 Hz/60 Hz
Length stop (max.)
1,224 mm
Bending/side length (min.)
50 mm
Bending angle (max.)
90 °
Bending (max.)
120 x 12 mm
Z-Bend (min.)
72 mm
Cutting (max.)
120 x 12 mm
Punching (max.)
6.6 x 21.5 mm
Punching/material thickness (max.)
12 mm
Permissible operating pressure (p. max.)
700 bar
Packs of
1 pc(s).
Weight/pack
390 kg
Customs tariff number
84624900
EAN
4028177920637
ETIM 9
EC011824
ETIM 8
EC011824
ECLASS 8.0
36600804
Product description
CW 120 – M mobile busbar machining. The CW 120 – M mobile station is ideal for bending, punching and cutting busbars.
