4055912

Part Number: 4055912
4055912
Manufacturer
Rittal
Part number
4055912
Category
Alt Part Number
AS 4055.912

Product Information

Extended Description

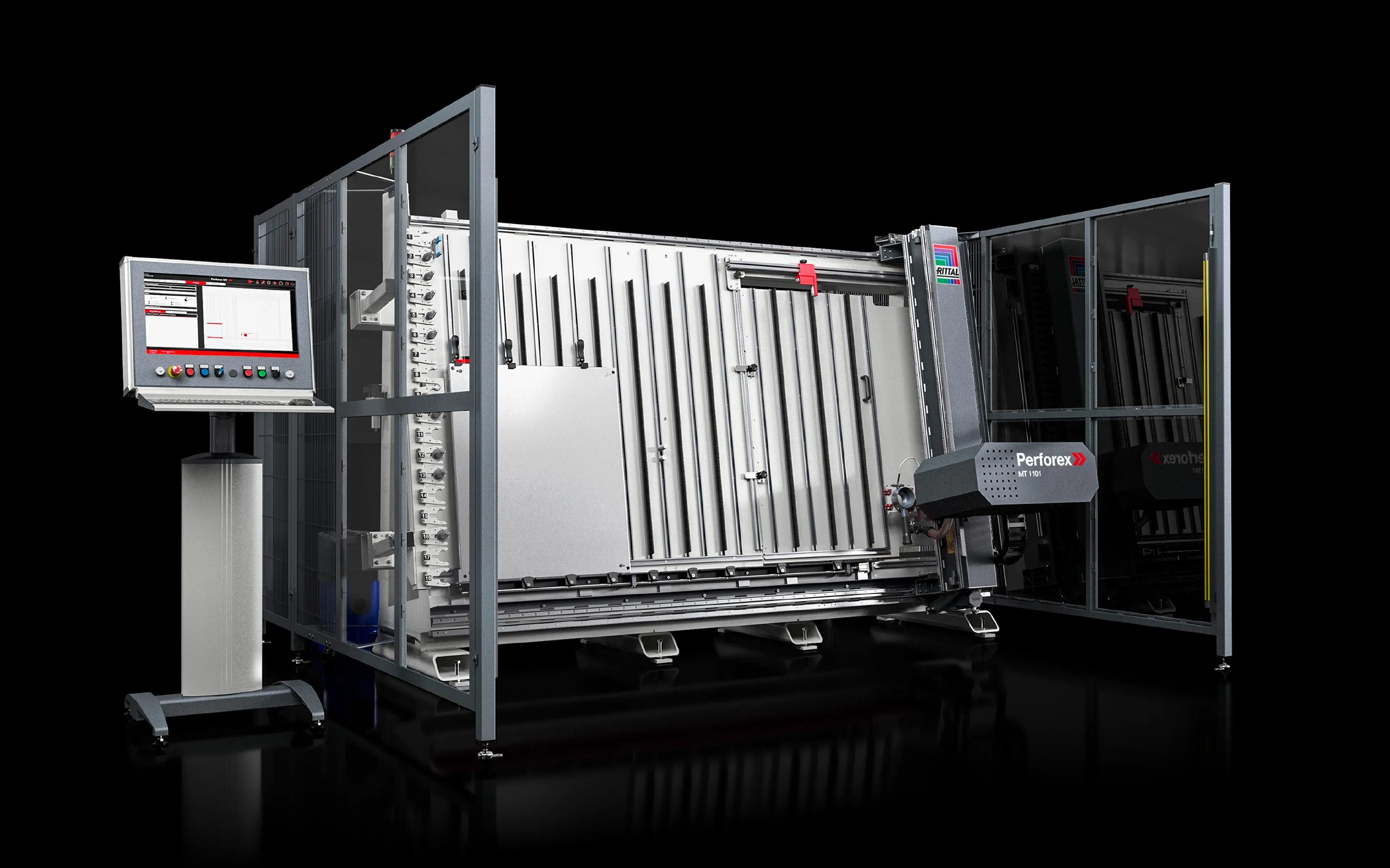

4055912 Rittal: The Perforex Milling Terminal is a 4-axis CNC machine used for modifying standard enclosures. It provides automated machining of enclosure panels and housings e.g. for holes, threads and cut-outs. The Perforex Milling Terminal 1101 is an inexpensive entry-level solution for automated component modification. Fast, simple machining of nearly all compact and large enclosures.
Article number
AS 4055.912
Design
Enclosure panel machining | Enclosure machining | Patented pressure plate with integral extraction of the milling swarf | High-performance spindle including minimal quantity lubrication | Automatic tool testing | DIN tools | Pneumatic clamping device | US version
Product description
The Perforex Milling Terminal is a 4-axis CNC machine used for modifying standard enclosures. It provides automated machining of enclosure panels and housings e.g. for holes, threads and cut-outs. The Perforex Milling Terminal 1101 is an inexpensive entry-level solution for automated component modification. Fast, simple machining of nearly all compact and large enclosures.
Benefits
Fast return on investment (ROI) and significantly enhanced competitiveness
Supply includes
The Perforex MT S is configured on a project-specific basis
Machinable material
Aluminium
Machine options
2 additional zero points for multi-part machining 4050.110
Machine controller
Order management with the Rittal Panel Processing Center (RiPPC)
Safety
Security fence to DIN EN ISO 13857
Interfaces
Rittal Panel Processing Center (RiPPC)
Note
We reserve the right to make technical modifications
Compressed air connection
6 bar
Weight of workpiece, panel machining (max.)
200 kg
Weight of workpiece, enclosure machining (max.)
200 kg
No. of tool slots
18
Machining accuracy
± 0.2 mm
Speed X/Y-axis
60,000 mm/min
Speed Z-axis
12,000 mm/min
Spindle speed (max.)
21,000 rpm
Spindle performance (max.)
11 kW
Control voltage (DC)
24 V
Rated current max.
6.2 A
Rated operating voltage
3L, 400 - 480 Y / 230 - 277 V, 50/60 Hz
Machining speed (max.)
1,500 mm/min
Dimensions of clampable enclosures min.
Width: 100 mm | Height: 100 mm | Depth: 140 mm
Dimensions of clampable enclosures max.
Width: 1,200 mm | Height: 1,400 mm | Depth: 1,400 mm
Dimensions of clampable enclosure panels min.
Width: 100 mm | Height: 100 mm | Depth: 1.25 mm
Dimensions of clampable enclosure panels max.
Width: 2,450 mm | Height: 1,500 mm | Depth: 5 mm
Maximum machinable area for enclosure panels
Width: 2,200 mm | Height: 1,500 mm
Maximum machinable area for enclosures
Width: 750 mm | Height: 1,400 mm
Packs of
1 pc(s).
Weight/pack
1,600 kg
Customs tariff number
84571090
EAN
4028177971455
