Part Number: 4055922
4055922
Manufacturer
Rittal
Part number
4055922
Category
Alt Part Number
AS 4055.922

Product Information

Extended Description

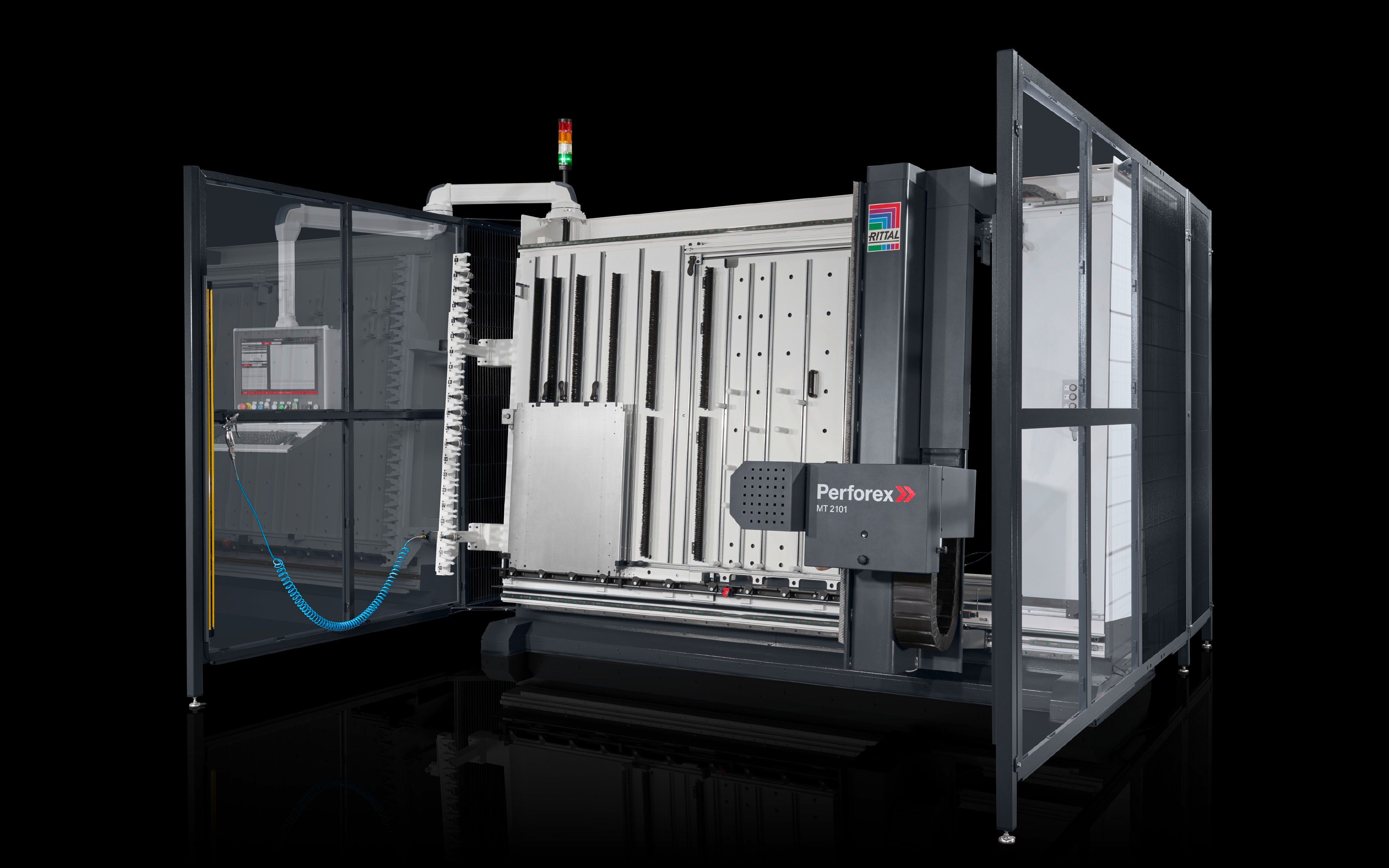

4055922 Rittal: The Perforex Milling Terminal is a 4-axis CNC machine used for modifying standard enclosures. It provides automated machining of enclosure panels and housings e.g. for holes, threads and cut-outs. The Perforex Milling Terminal 2101 offers the greatest flexibility of the MT series. It supports machining of all compact and large enclosures.
Article number
AS 4055.922
Design
Enclosure machining | Enclosure panel machining | Patented pressure plate with integral extraction of the milling swarf | High-performance spindle including minimal quantity lubrication | Automatic tool testing | DIN tools | Pneumatic clamping device | US version
Product description
The Perforex Milling Terminal is a 4-axis CNC machine used for modifying standard enclosures. It provides automated machining of enclosure panels and housings e.g. for holes, threads and cut-outs. The Perforex Milling Terminal 2101 offers the greatest flexibility of the MT series. It supports machining of all compact and large enclosures.
Benefits
Fast return on investment (ROI) and significantly enhanced competitiveness
Supply includes
The Perforex MT S is configured on a project-specific basis
Machinable material
Aluminium
Machine options
Signal pillar 4055.954
Machine controller
Order management with the Rittal Panel Processing Center (RiPPC)
Safety
Security fence to DIN EN ISO 13857
Interfaces
Rittal Panel Processing Center (RiPPC)
Note
We reserve the right to make technical modifications
Support area
Width: 4,600 mm | Height: 2,450 mm | Depth: 3,750 mm
Compressed air connection
6 bar
Weight of workpiece, panel machining (max.)
250 kg
Weight of workpiece, enclosure machining (max.)
300 kg
No. of tool slots
21
Machining accuracy
± 0.2 mm
Speed X/Y-axis
60,000 mm/min
Speed Z-axis
12,000 mm/min
Spindle speed (max.)
21,000 rpm
Spindle performance (max.)
11 kW
Control voltage (DC)
24 V
Rated current max.
6.2 A
Rated operating voltage
3L, 400 - 480 Y / 230 - 277 V, 50/60 Hz
Machining speed (max.)
1,500 mm/min
Dimensions of clampable enclosures min.
Width: 100 mm | Height: 100 mm | Depth: 140 mm
Dimensions of clampable enclosures max.
Width: 1,400 mm | Height: 1,600 mm | Depth: 1,600 mm
Dimensions of clampable enclosure panels min.
Width: 100 mm | Height: 100 mm | Depth: 1.25 mm
Dimensions of clampable enclosure panels max.
Width: 2,450 mm | Height: 1,700 mm | Depth: 5 mm
Maximum machinable area for enclosure panels
Width: 2,200 mm | Height: 1,700 mm
Maximum machinable area for enclosures
Width: 1,200 mm | Height: 1,600 mm
Support area
Width: 4,600 mm | Height: 2,450 mm | Depth: 3,750 mm
Packs of
1 pc(s).
Weight/pack
2,300 kg
Customs tariff number
84571090
EAN
4028177971448
