4120000
Part Number: 4120000
Manufacturer
Rittal
Part number
4120000
Alt Part Number
PS 4120.000
Product Information
Extended Description

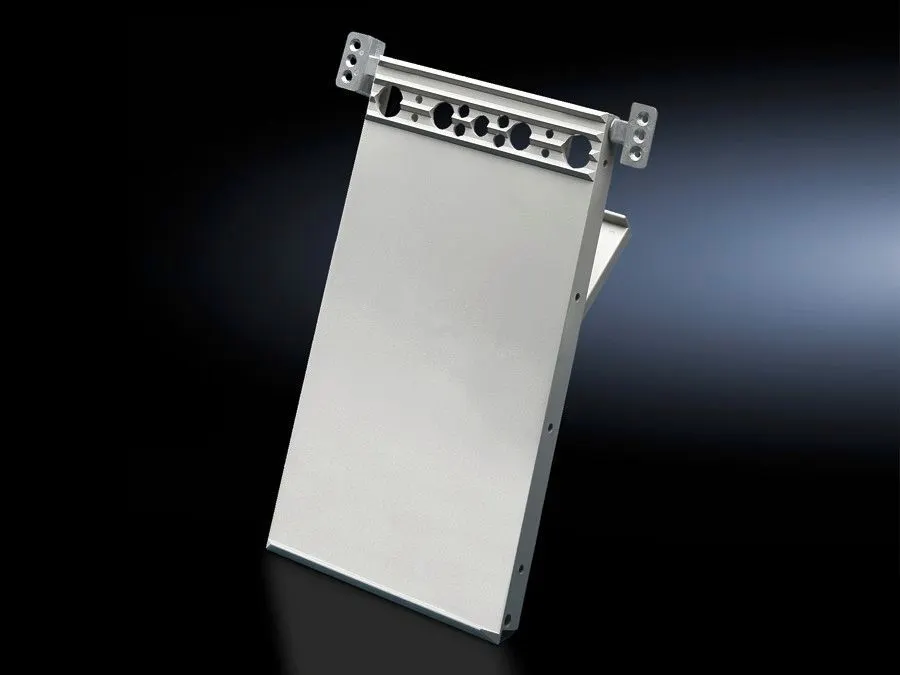

4120000 Rittal: PS Wiring plan lectern, for VX, TS, VX SE, PC, TP, for door width: 400 mm
Article number
PS 4120.000
Product description
Holds wiring plans during fault-finding and maintenance work. Wiring plan lecterns may be bayed in line with the door width. For mounting on the tubular door frame or on the perforated door strip.
Material
Utility lectern: Polypropylene | Mounting bracket: Die-cast zinc
Colour
Similar to RAL 7035
Supply includes
Assembly parts
To fit door width
400 mm | 500 mm | 600 mm | 800 mm | 1,000 mm
Installation options
This number of wiring plan lecterns must be used on the tubular door frame
Dimensions
Width: 210 mm | Height: 365 mm | Depth: 24 mm
To fit
Enclosure type: VX | TS | VX SE | TP | PC
Packs of
1 pc(s).
Weight/pack
0.88 kg
Customs tariff number
39269097
EAN
4028177091887
ETIM 8
EC000317
ETIM 7.0
EC000317
ECLASS 8.0
27189267
Product description
PS Wiring plan lectern, for VX, TS, VX SE, PC, TP, for door width: 400 mm
