4127210
Part Number: 4127210
Manufacturer
Rittal
Part number
4127210
Category
Alt Part Number
SZ 4127.210
Product Information
Extended Description

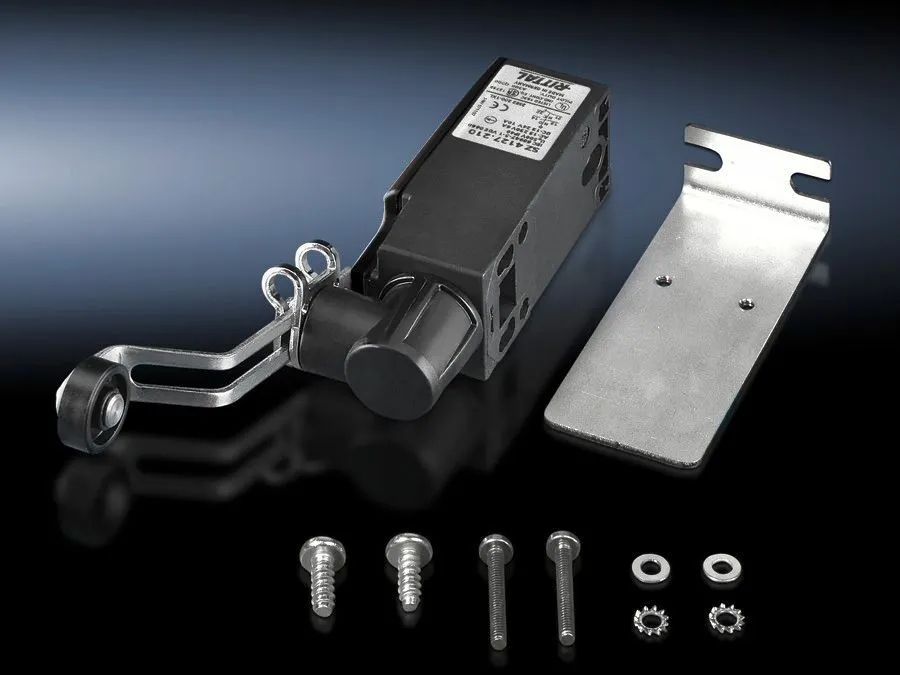

4127210 Rittal: SZ Door-operated switch, with toggle, without connection cable, UL
Article number
SZ 4127.210
Design
with toggle for swing frame, without connection cable
Function principle
The toggle is actuated via the tubular door frame of the sheet steel door, or in the case of glazed doors, via an adaptor included with the supply.
Note
For installation in VX IT only in conjunction with VX mounting bracket for door-operated switch
Rated impulse withstand voltage, phase to phase
6000 V AC
Rated insulation voltage
400 V AC
Installation options
for TS enclosures with installed large swing frame
Electrical connection
240 V AC/6 A | 125 V AC/8 A | 24 V AC/6 A | 24 V DC/6 A
Rated operating voltage
400 V
IP protection category to IEC 60 529
IP 40
Packs of
1 pc(s).
Weight/pack
0.26 kg
Customs tariff number
85369095
EAN
4028177581326
ETIM 8
EC002626
ETIM 7.0
EC002626
ECLASS 8.0
27189266
Product description
SZ Door-operated switch, with toggle, without connection cable, UL
