4140840
Part Number: 4140840
Manufacturer
Rittal
Part number
4140840
Category
Alt Part Number
SZ 4140.840
Product Information
Extended Description

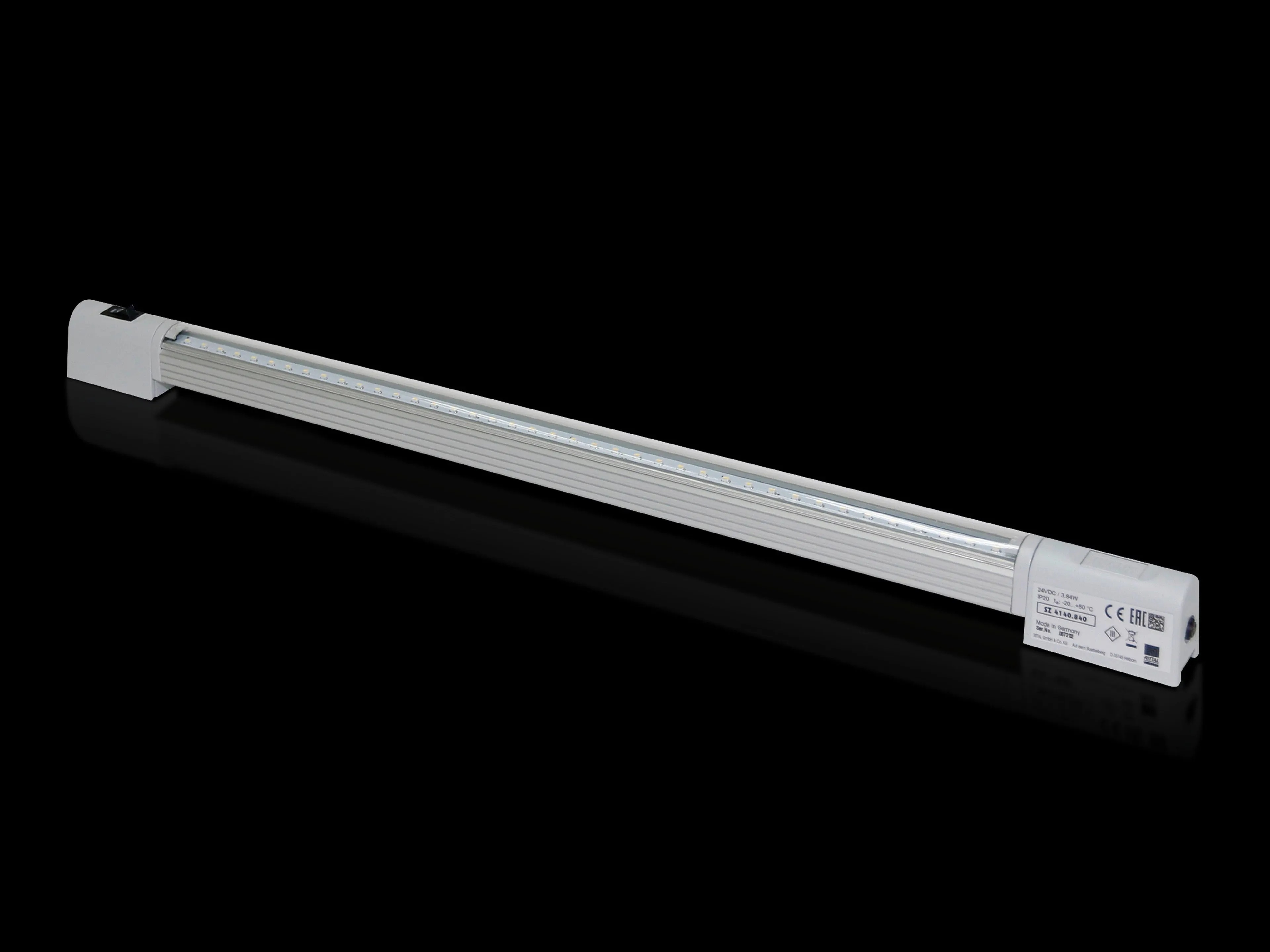

4140840 Rittal: SZ System light LED compact, WHD: 530x33x21 mm, 24 V DC, Integral on/off/door-operated switch mode
Article number
SZ 4140.840
Benefits
Max. EMC capacity.
Function principle
Integral through-wiring.
Material
Light body: Extruded aluminium | Light cover: Polycarbonate (halogen-free) | Light ends: PC-ABS
Colour
Similar to RAL 7035
Supply includes
LED compact system light | Light | Light cover | Assembly parts
Mounting distance screws
550 mm
Connection options
Power supply via connectors
Light
LEDs, cold white
Protection class
III (SELV)
Switch (type)
Integral, on/off/door-operated switch mode
Light cover
Yes
Light – installation type
Screw-fastening
Rated impulse withstand voltage, phase to earth
Depending on the power pack
Rated impulse withstand voltage, phase to phase
Depending on the power pack
Rated insulation voltage
Depending on the power pack
Rated current max DC note
When configuring rows of lights, the maximum rated current is 2 amperes
With DC
0.16 A
Number of LEDs
40
Mounting distance clip/magnet
475 mm
Installation options
Directly onto the enclosure section with 25 mm pitch pattern
Note
Only intended for use in enclosures and sealed cases
Light cone adjustment
Yes
Dimensions
Width: 530 mm | Height: 32.8 mm | Depth: 20.64 mm
Rated operating voltage
24 V (DC)
IP protection category to IEC 60 529
IP 20
Packs of
1 pc(s).
Weight/pack
0.44 kg
Customs tariff number
94054990
EAN
4028177630154
ETIM 9
EC000321
ETIM 8
EC000321
ECLASS 8.0
27189241
Product description
SZ System light LED compact, WHD: 530x33x21 mm, 24 V DC, Integral on/off/door-operated switch mode
