4193000
Part Number: 4193000
Product Information
Extended Description

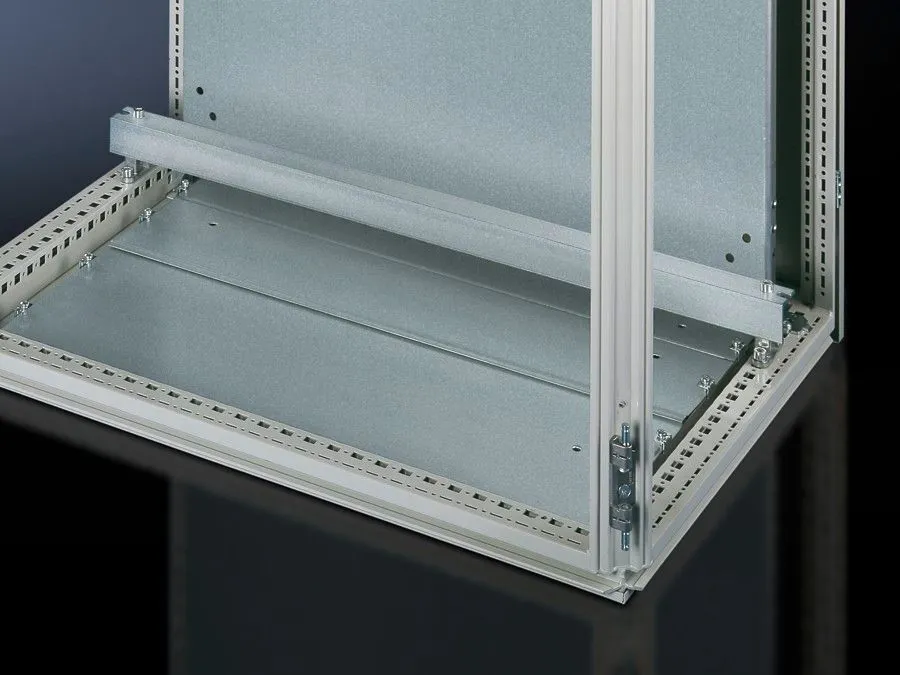

4193000 Rittal: SZ Cable clamp rail (right angle section), for TS, PC, TP universal console, TS base/plinth, Flex-Block, for W: 400 mm
Article number
PS 4193.000
Product description
For strain relief with cable entry. Depth-variable mounting on a 25 mm pitch pattern of holes on the horizontal enclosure section or in the TS base/plinth / Flex-Block.
Material
Steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Assembly instruction
The fixing bolt for base/plinths is required for mounting on the TS base/plinth
Dimensions
Length: 385 mm
To fit
Enclosure type: TS | PC | TP universal console | Width: = 400 mm
Packs of
2 pc(s).
Weight/pack
2.44 kg
Customs tariff number
73269098
EAN
4028177093614
ETIM 9
EC000322
ETIM 8
EC000322
ECLASS 8.0
27400604
Product description
SZ Cable clamp rail (right angle section), for TS, PC, TP universal console, TS base/plinth, Flex-Block, for W: 400 mm
