4196000
Part Number: 4196000
Product Information
Extended Description

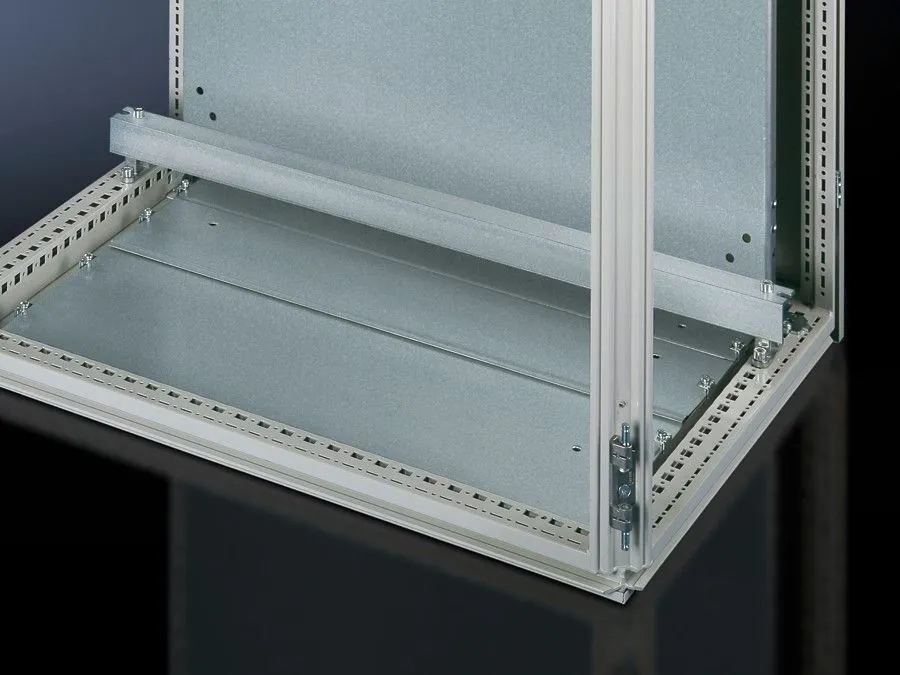

4196000 Rittal: SZ Cable clamp rail (right angle section), for W: 1200 mm
Article number
PS 4196.000
Product description
For strain relief with cable entry. Depth-variable mounting on a 25 mm pitch pattern of holes on the horizontal enclosure section or in the TS base/plinth / Flex-Block.
Material
Steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Assembly instruction
The fixing bolt for base/plinths is required for mounting on the TS base/plinth
Dimensions
Length:Â 1,185 mm
To fit
Enclosure type:Â TS | PC | TP universal console | Width:Â = 1,200 mm
Packs of
2 pc(s).
Weight/pack
6.832 kg
Customs tariff number
73269098
EAN
4028177093676
ETIM 9
EC000322
ETIM 8
EC000322
ECLASS 8.0
27400604
Product description
SZ Cable clamp rail (right angle section), for W: 1200 mm
