4347000
Part Number: 4347000
Product Information
Extended Description

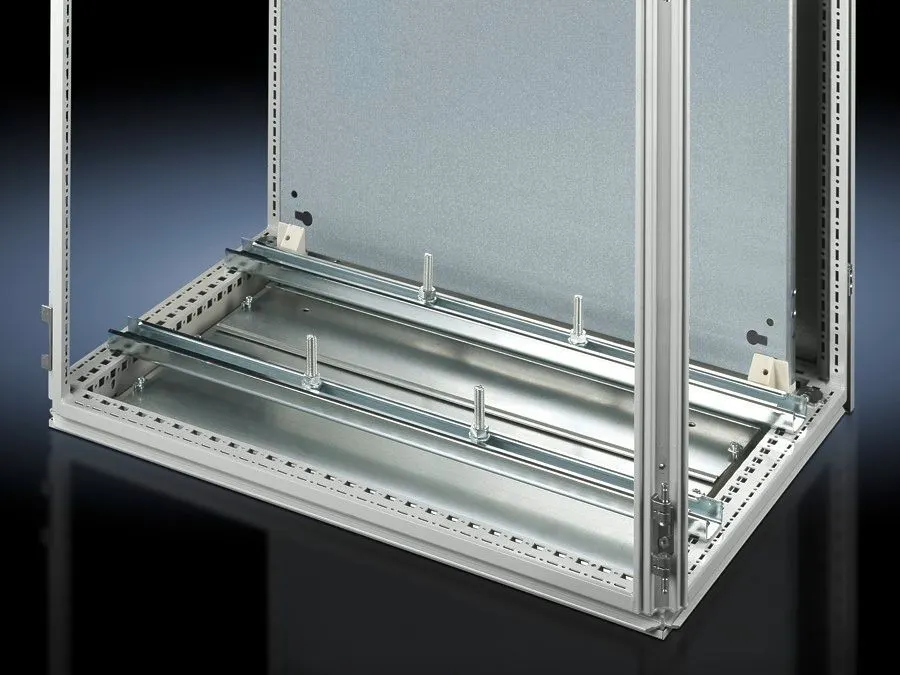

4347000 Rittal: SZ Free-standing enclosure system, for W: 1000 mm
Article number
SZ 4347.000
Product description
For heavy installed equipment such as transformers. T-head screw and slot in the support rail accommodate all mounting dimensions.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
2 system support rails (45 x 25 mm) | 4 T-head screws M12 x 60 mm | Assembly parts
Installation options
On the vertical TS enclosure section via snap-on nuts TS 8800.808 or adaptor rails for VX compatibility, height-offset, via TS punched rail 25 x 38 mm
To fit
Enclosure type: TS | Width: = 1,000 mm
Packs of
2 pc(s).
Weight/pack
4.84 kg
Customs tariff number
73269098
EAN
4028177099395
ETIM 9
EC001285
ETIM 8
EC001285
ECLASS 8.0
27189261
Product description
SZ Free-standing enclosure system, for W: 1000 mm
