4582500
Part Number: 4582500
Product Information
Extended Description

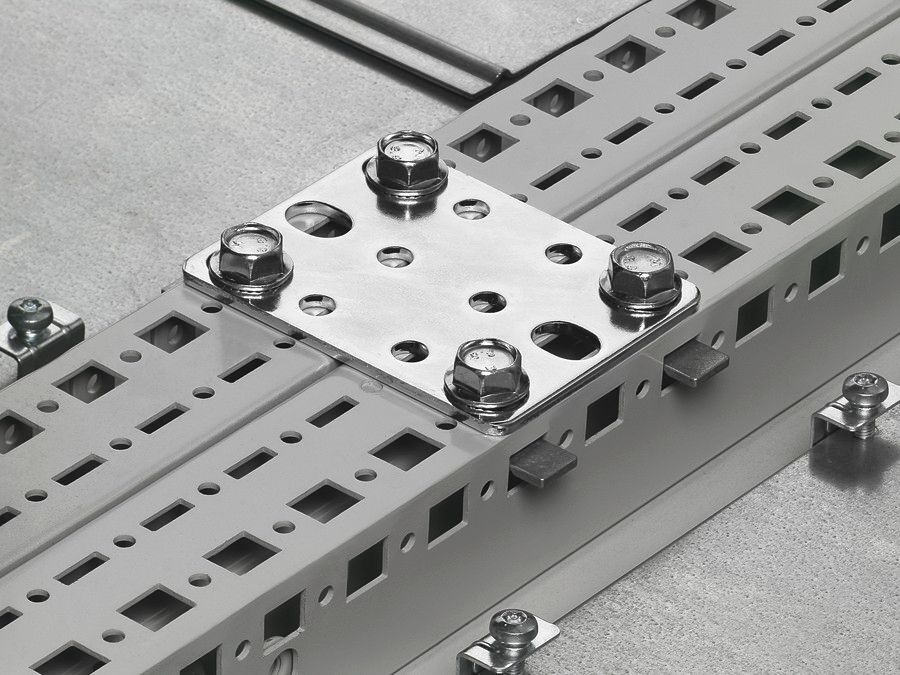

4582500 Rittal: TS Angular baying bracket, for TS/TS, TS/PS
Article number
TS 4582.500
Product description
For additional stabilisation, or in cases where mounting plate brackets, swing frame or busbar support prevent the installation of angular baying brackets.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Assembly instruction
The snap-on nut is required for mounting on the vertical enclosure section
To fit
Enclosure type:Â TS 8 | PS
Packs of
4 pc(s).
Weight/pack
0.768 kg
Customs tariff number
83024900
EAN
4028177185531
ETIM 9
EC002622
ETIM 8
EC002622
ECLASS 8.0
27189263
Product description
TS Angular baying bracket, for TS/TS, TS/PS
