4696000
Part Number: 4696000
Manufacturer
Rittal
Part number
4696000
Alt Part Number
TS 4696.000
Product Information
Extended Description

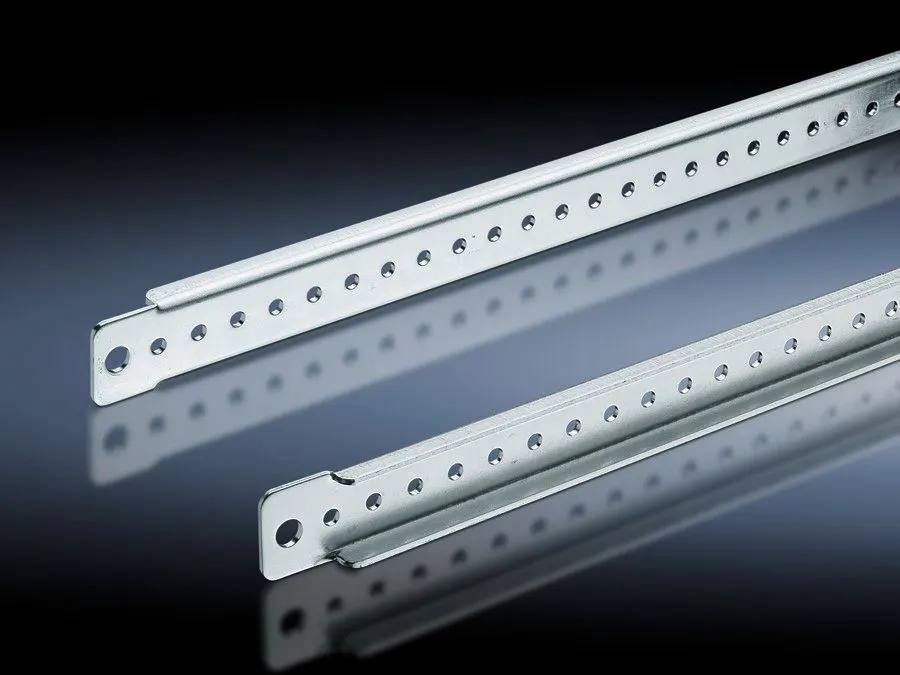

4696000 Rittal: TS Support strip, for VX, TS, VX SE, TP, for outer mounting level: for W/D: 600 mm, L: 540 mm
Article number
TS 4696.000
Product description
For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
Technical specifications
4.5 mm diameter hole on a 25 mm pitch pattern
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Length
540 mm
VX installation options
In enclosure width/depth 600 mm
VX SE installation options
In enclosure width/depth 600 mm, on the outer mounting level
AX installation options
In door width 600 mm, with cam lock
PC installation options
In enclosure width 600 mm, on the outer mounting level
WI installation options
In enclosure width/depth 600 mm, on the outer mounting level
TS installation options
In enclosure width/depth 600 mm, on the outer mounting level
AE installation options
In enclosure width/height 600 mm, in conjunction with rail for interior installation AE
TP installation options
In consoles for 3-part assembly, at the height of the enclosure cover, in conjunction with rail for interior installation for TP, compact enclosure HD
To fit
Enclosure type: VX | TS | VX SE | TP | PC | IW | AX | AE | To fit width/depth: 600 mm
To fit
Base/plinth system VX
Packs of
20 pc(s).
Weight/pack
5.56 kg
PCF per pack (cradle-to-gate)
21.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177108158
ETIM 9
EC002620
ETIM 8
EC002620
ECLASS 8.0
27189261
Product description
TS Support strip, for VX, TS, VX SE, TP, for outer mounting level: for W/D: 600 mm, L: 540 mm
