5001080
Part Number: 5001080
Manufacturer
Rittal
Part number
5001080
Alt Part Number
CM 5001.080
Product Information
Extended Description

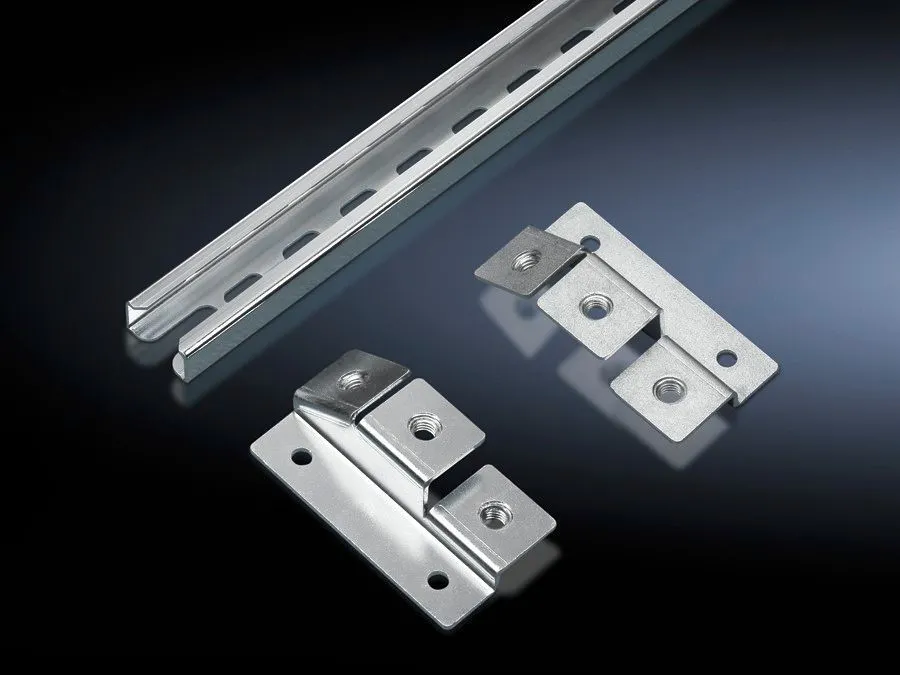

5001080 Rittal: CM Cable clamp rail C-section, for mounting plates, for TS, VX TS, SE, TP, for W: 600 mm
Article number
CM 5001.080
Product description
For strain relief with cable entry. The length of the cable clamp rail is tailored to the width of the mounting plate. The mounting bracket included with the supply supports three different installation situations on the mounting plate.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Two mounting brackets and assembly screws
Installation options
straight, at a distance of 23 mm from the mounting plate
To fit
Base/plinth system VX
Dimensions
Length: 499 mm
To fit
Enclosure type: VX | TS | VX SE | TP | HD compact enclosure | Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
1.5 kg
PCF per pack (cradle-to-gate)
5.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177502949
ETIM 9
EC000322
ETIM 8
EC000322
ECLASS 8.0
27400604
Product description
CM Cable clamp rail C-section, for mounting plates, for TS, VX TS, SE, TP, for W: 600 mm
