5001160
Part Number: 5001160
Product Information
Extended Description

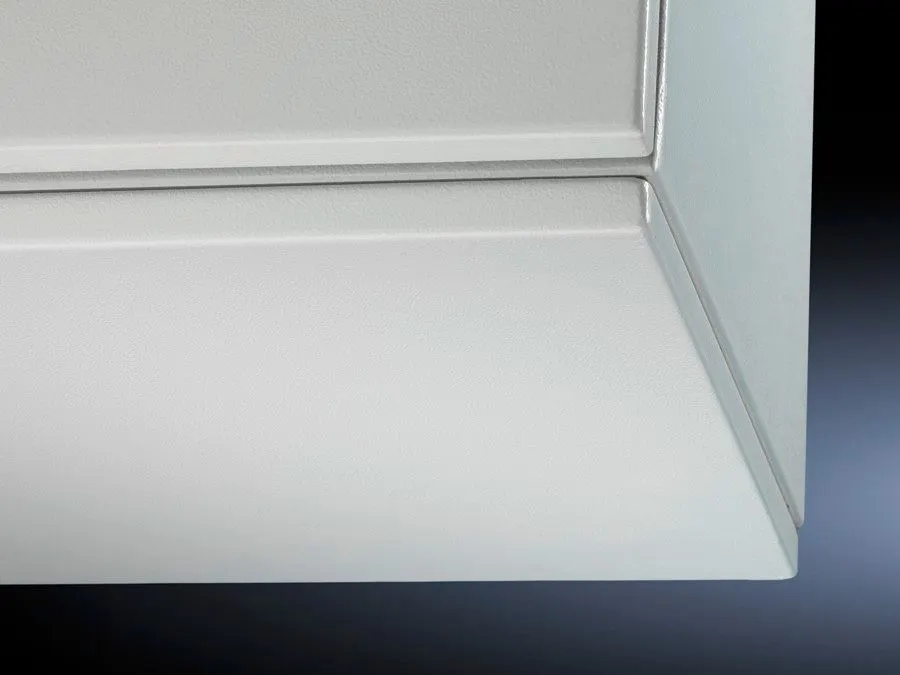

5001160 Rittal: CM Cover plate, for TP, for WD: 1200x400 mm
Article number
CM 5001.160
Product description
To conceal the entire base opening with CM or for covering the complete top opening when using the pedestals on their own.
Material
Sheet steel
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Height: 24.5 mm
To fit
Enclosure type: TP pedestals | Width: = 1,200 mm | Depth: = 400 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Packs of
1 pc(s).
Weight/pack
7.4 kg
PCF per pack (cradle-to-gate)
28.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177501584
ETIM 9
EC002620
ETIM 8
EC002620
ECLASS 8.0
27189261
Product description
CM Cover plate, for TP, for WD: 1200x400 mm
