8950840
Part Number: 8950840
Product Information
Extended Description

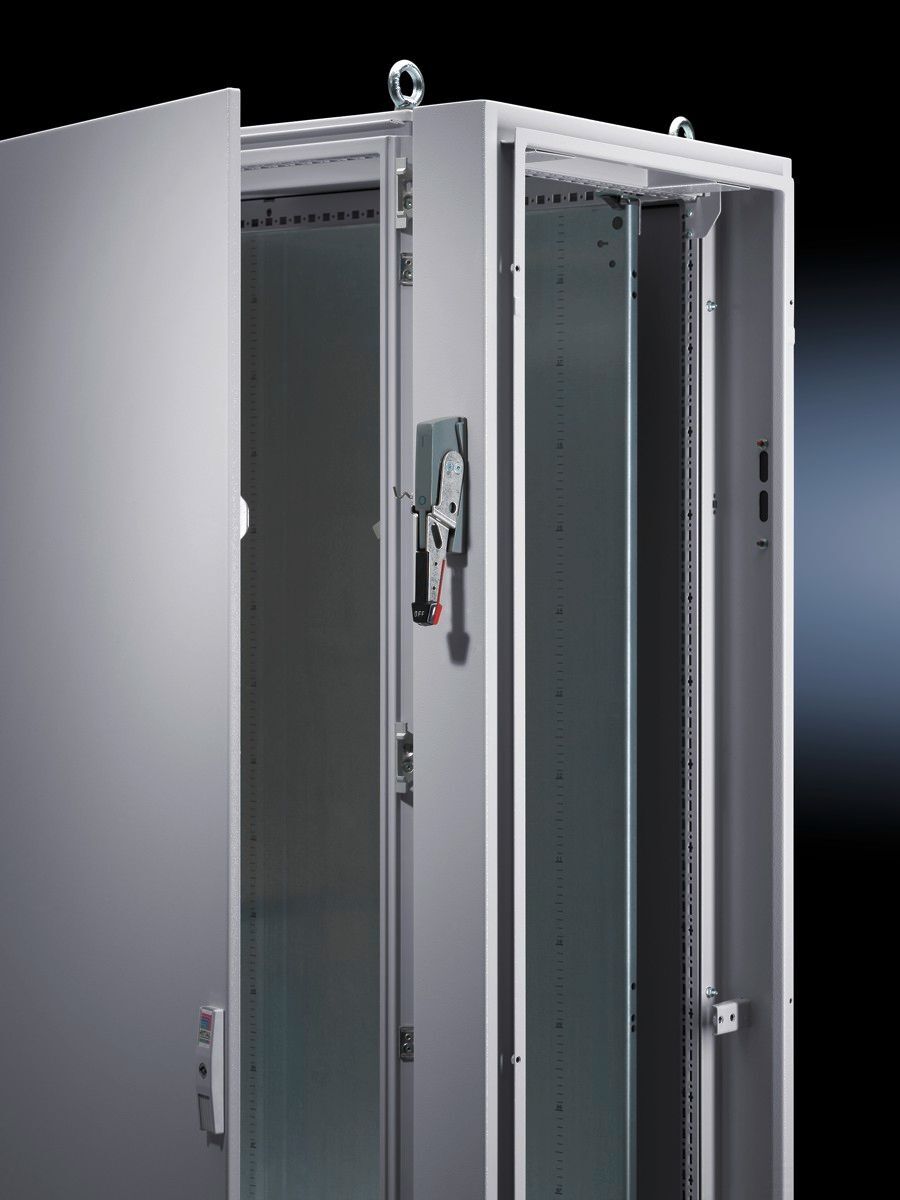

8950840 Rittal: TS TS isolator door cover (US version), WHD: 119.5x1800x400 mm
Article number
TS 8950.840
Product description
Including main door lock for safety locking of enclosures and bayed enclosure suites in accordance with US regulations, only in conjunction with actuator lever for master switches.
Benefits
In combination with operating mechanism, adjacent door latch, interconnecting rods meets the requirements of UL 508 A.
Applications
Allen Bradley: 1494 F-M1/P1/S1 and 140 U-K-FCX04
Material
Sheet steel
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Main door lock, cover plate and assembly parts.
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Note
The enclosure in front of the isolator door cover must be a single-door enclosure
Dimensions
Width:Â 119.5 mm | Height:Â 1,800 mm | Depth:Â 400 mm
Packs of
1 pc(s).
Weight/pack
15.9 kg
Customs tariff number
73269098
EAN
4028177693036
ETIM 9
EC000712
ECLASS 8.0
27180101
Product description
TS TS isolator door cover (US version), WHD: 119.5x1800x400 mm
